Blind Spot Detection Warning Indicator

  1. Disconnect the negative (-) battery terminal.
  2. Remove the mirror (A) from the mirror holder.

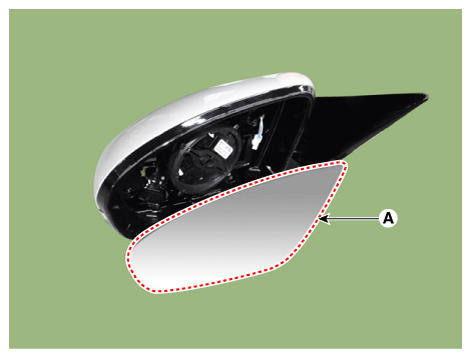

    Fig 1: Locating Mirror
    G12298342Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the mirror heater connector (B) and BSD indicator connector (A).

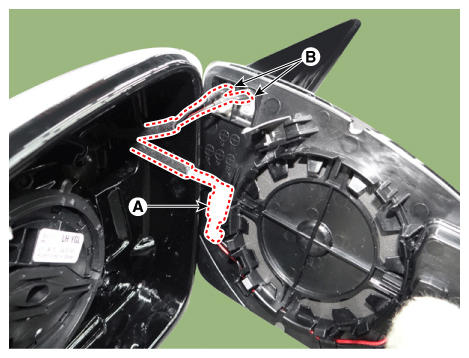

    Fig 2: Locating Mirror Heater Connector
    G12298343Courtesy of KIA MOTORS AMERICA, INC.
