Components Location

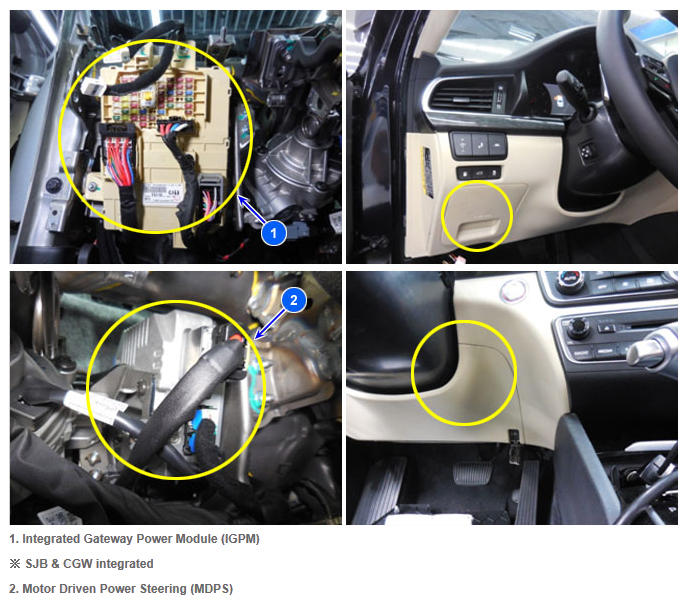

Fig 1: IGPM, SJB, CGW Integrated, & MDPS Components Location

G12288296

Courtesy of KIA MOTORS AMERICA, INC.
