Integrated Gateway Power Control Module Diagnosis
>>
DTC C166D-00: CAN Time-Out HUD
>>
Components Location
Components Location

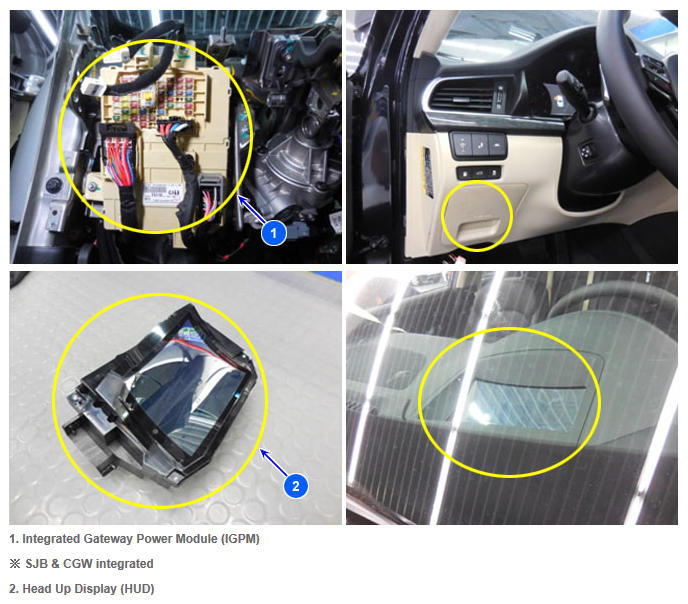

Fig 1: IGPM, SJB, CGW Integrated & Head Up Display (HUD) Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
