Integrated Gateway Power Control Module Diagnosis
>>
DTC C1659-00: CAN Time-Out SAS
>>
Components Location
Components Location

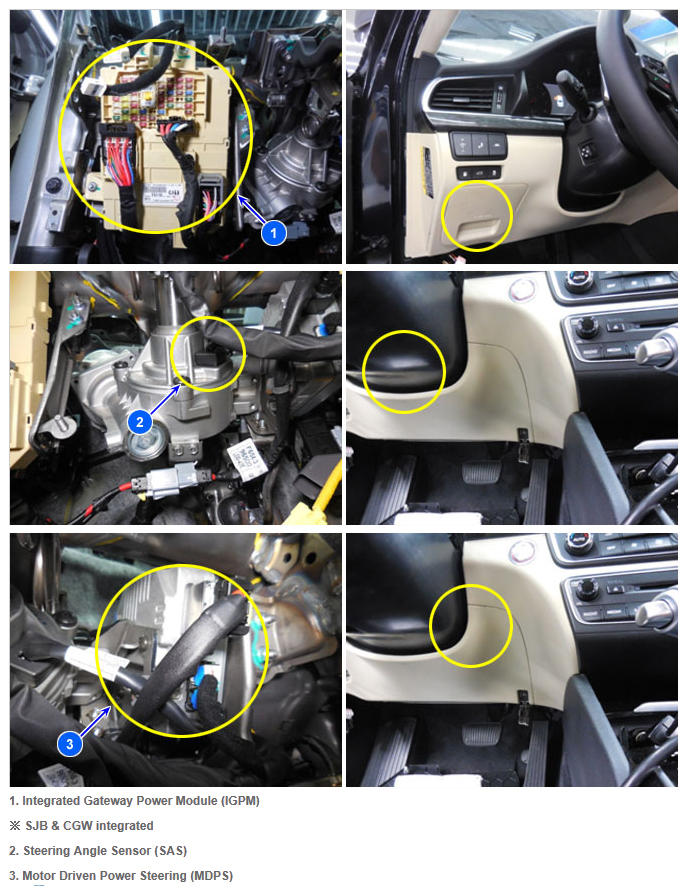

Fig 1: IGPM, SJB, CGW Integrated, Steering Angle Sensor (SAS) & MDPS Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
