Integrated Gateway Power Control Module Diagnosis
>>
DTC B2810-00: CAN Time-Out AVM/PGS
>>
Components Location
Components Location

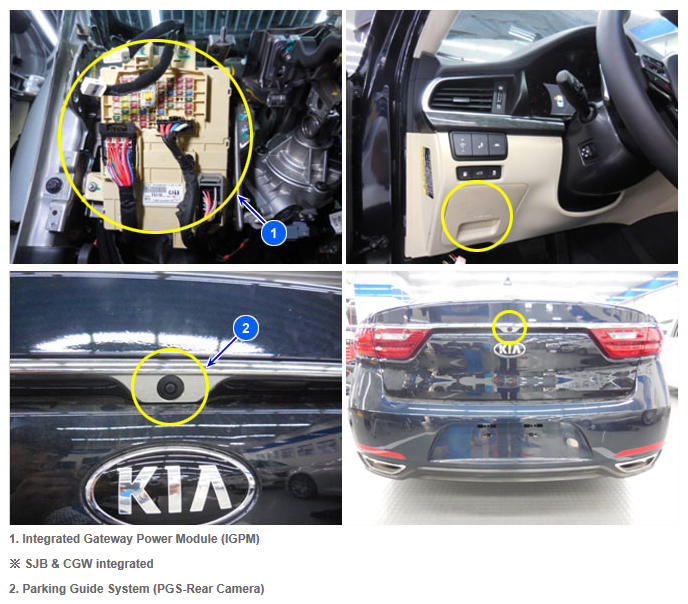

Fig 1: IGPM, SJB, CGW Integrated & Parking Guide System (PGS-Rear Camera) Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
