Integrated Gateway Power Control Module Diagnosis
>>
DTC B2800-00: CAN BUS Off Error M-CAN
>>
Components Location
Components Location

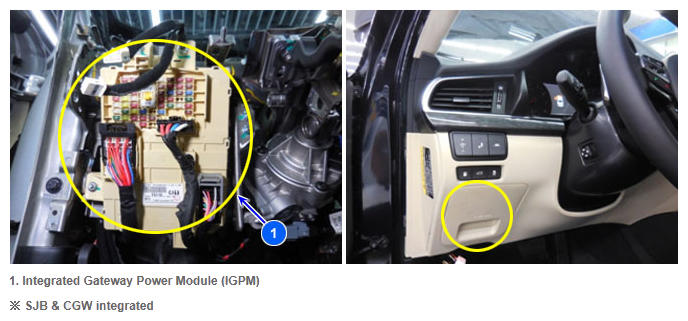

Fig 1: IGPM, SJB & CGW Integrated Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
