Signal Waveform & Data

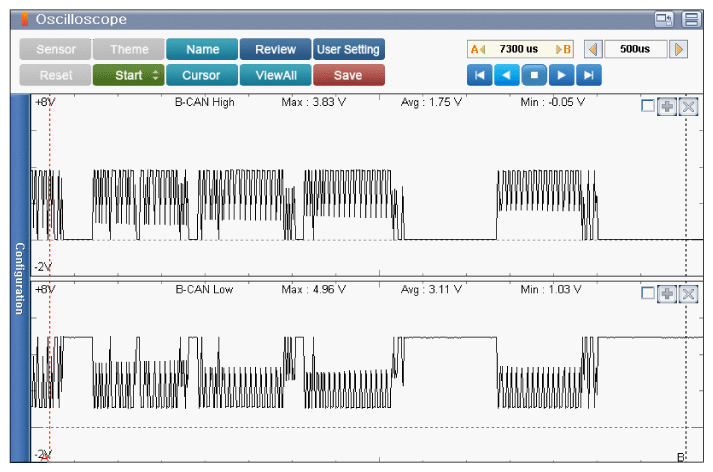

Fig 1: Scantool Display - Normal B-CAN Signal Waveform

G12288040

Courtesy of KIA MOTORS AMERICA, INC.
