Component Location

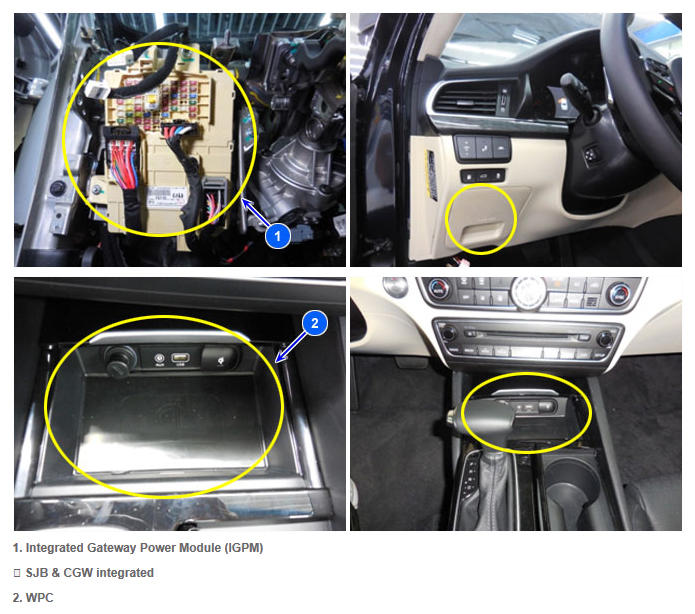

Fig 1: IGPM, SJB, CGW integrated & WPC Components Location

G12288039

Courtesy of KIA MOTORS AMERICA, INC.
