Integrated Gateway Power Control Module Diagnosis
>>
DTC B1607-00: CAN Time-Out PSM
>>
Components Location
Components Location

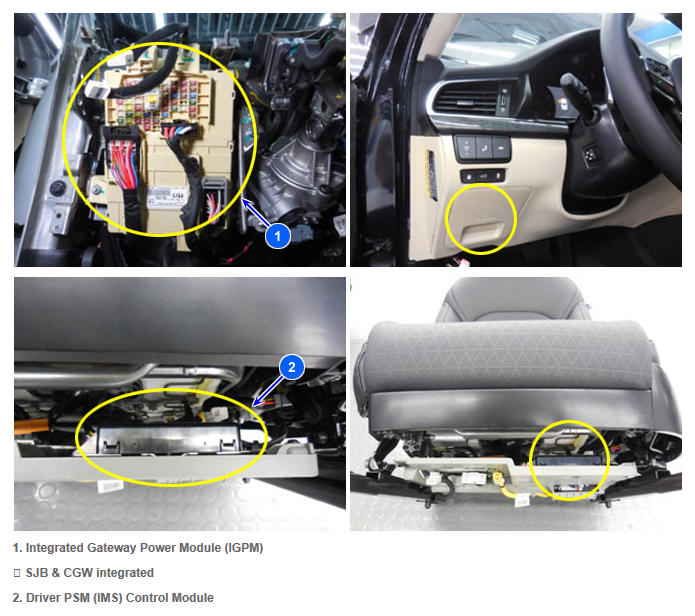

Fig 1: IGPM, SJB, CGW integrated & Driver PSM (IMS) Control Module Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
