Integrated Gateway Power Control Module Diagnosis
>>
DTC B1606-00: CAN Time-Out ADM
>>
Components Location
Components Location

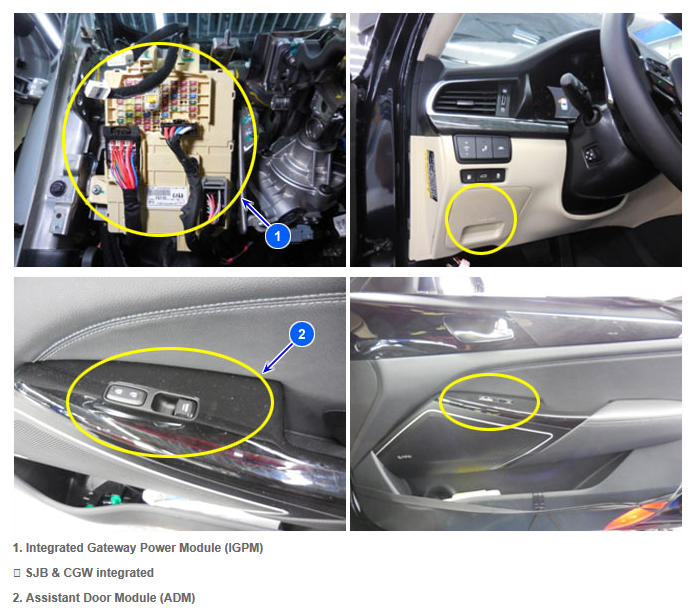

Fig 1: IGPM, SJB, CGW integrated & Assistant Door Module (ADM) Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
