Integrated Gateway Power Control Module Diagnosis
>>
DTC B1605-00: CAN Time-Out DDM
>>
Components Location
Components Location

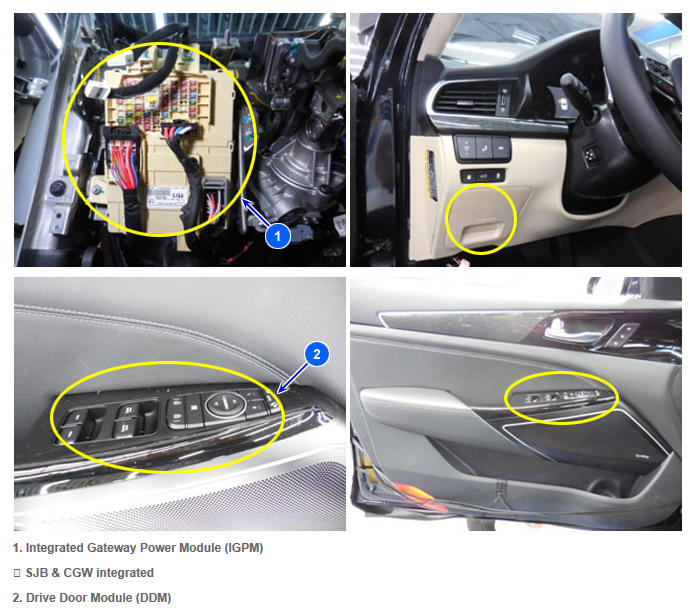

Fig 1: IGPM, SJB, CGW integrated & Drive Door Module (DDM) Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
