Monitor GDS status

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" (Power Button LED "Red")
  3. Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
  4. If the DTC P0A01 status is history, erase the DTC and re-check for MIL ON, if the DTC (Fig 1) status is present, select "Freeze Frame" and monitor "Information Code".
  5. Perform applicable repair procedure for "Information Code" and perform following procedure.

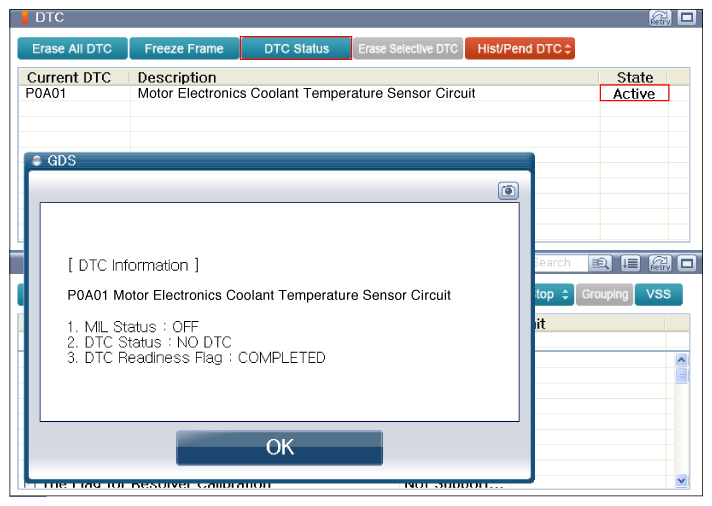

    Fig 1: Scantool Display - Diagnostic Trouble Code (DTC)
    G11947025Courtesy of KIA MOTORS AMERICA, INC.

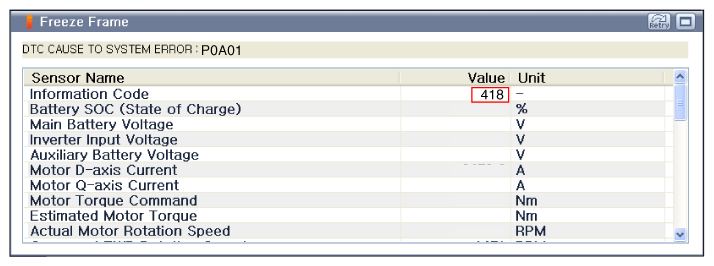

    Fig 2: Scantool Display - Freeze Frame (Information Code 418)
    G11947026Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Scantool Display - Freeze Frame (Information Code 426)
    G11947027Courtesy of KIA MOTORS AMERICA, INC.
    Information Code Check Items
    418 Heat sink temperature sensor of inverter
    426
  6. Is DTC status displayed as Present?

    YES

    • Perform inspection of expected items according to DTC.

    NO

    • Go to "MONITOR GDS DATA " procedure.
    • Fault is intermittent caused by poor contact in the sensor's and/or EPCU's connector or was repaired and EPCU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
