Home >> Kia >> 2016 >> Soul EV Base >> Repair and Diagnosis >> Electrical >> Charging Systems >> Electric Power Control Unit (EPCU) >> Auxiliary 12V Battery >> Troubleshooting

Auxiliary 12V Battery: Troubleshooting

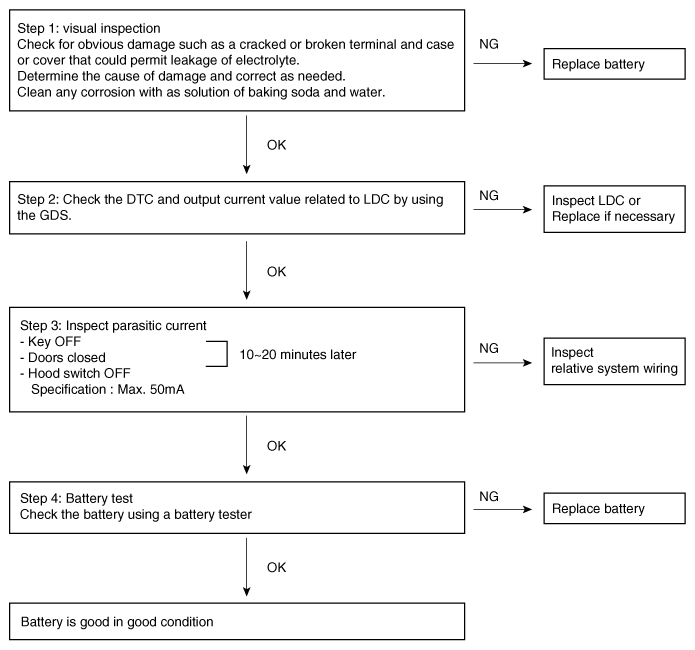

Fig 1: Battery Troubleshooting Flowchart

G11941548

Courtesy of KIA MOTORS AMERICA, INC.
