System Inspection

■ Evap. Leakage Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Select the "Vehicle S/W Management  " about related DTC with KDS/GDS.

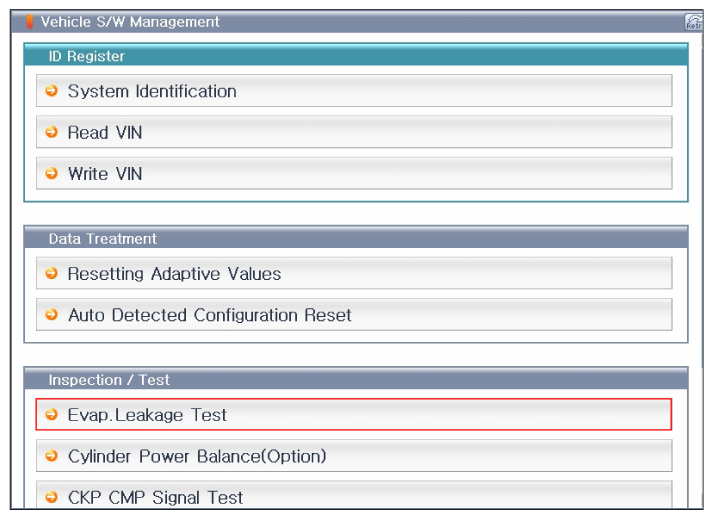

   Fig 1: Scantool Display - Select EVAP Leakage Test

   Courtesy of KIA MOTORS AMERICA, INC.

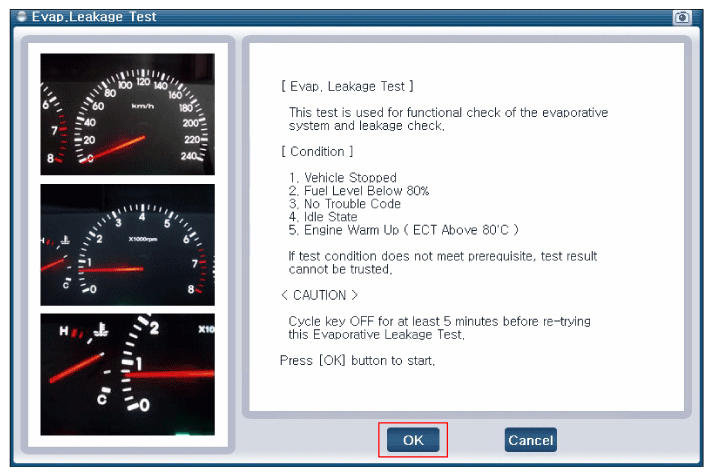

   Fig 2: Scantool Display - EVAP Leakage Test (Press OK Button)

   Courtesy of KIA MOTORS AMERICA, INC.

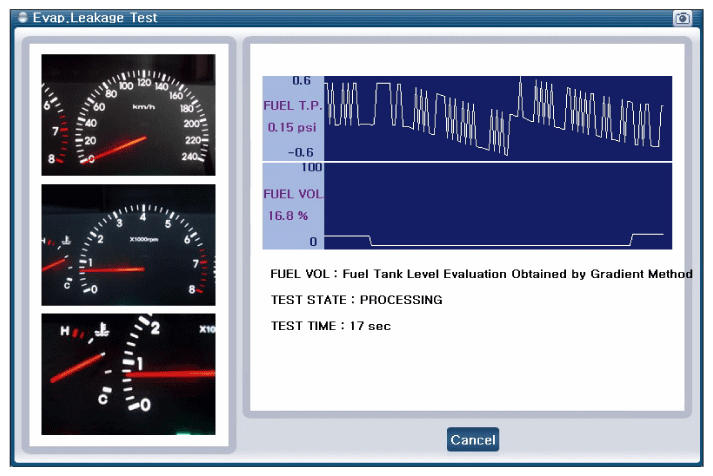

   Fig 3: Scantool Display - EVAP Leakage Test (Wait For 30 Seconds)

   Courtesy of KIA MOTORS AMERICA, INC.

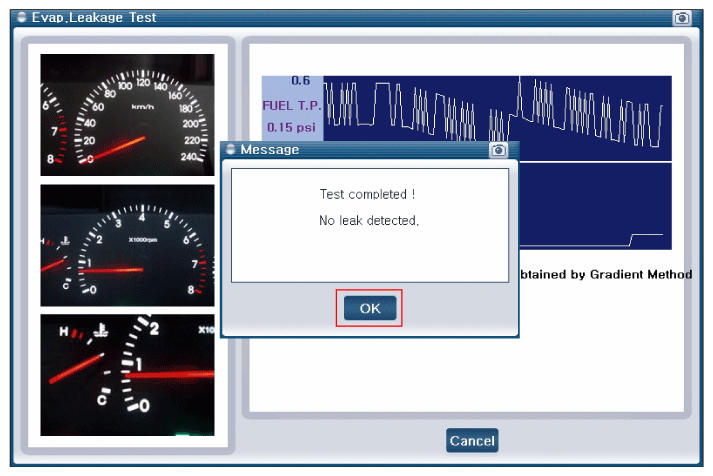

   Fig 4: Scantool Display - Test Completed (No Leak Detected)

   Courtesy of KIA MOTORS AMERICA, INC.

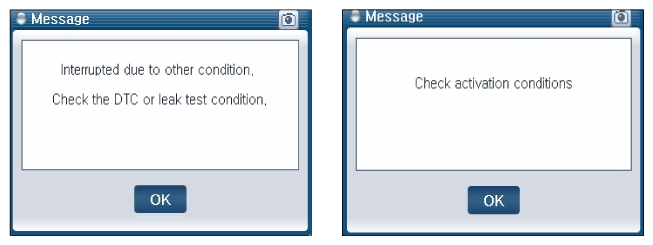

   Fig 5: Scantool Display - Message When In Incorrect Condition

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 6: Scantool Display - Test Completed (Evaporative System Fault)

   Courtesy of KIA MOTORS AMERICA, INC.
4. Go to "VERIFICATION OF VEHICLE REPAIR " procedures.
