Component Inspection

■ Camera (MFC) Installation

1. Refer to below Fig 1 and Fig 2 and reinstall the camera.

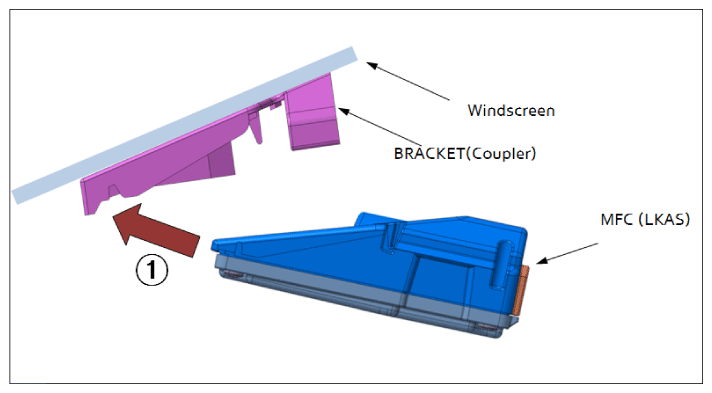

   Fig 1: Camera Installation Position (1st)

   Courtesy of KIA MOTORS AMERICA, INC.

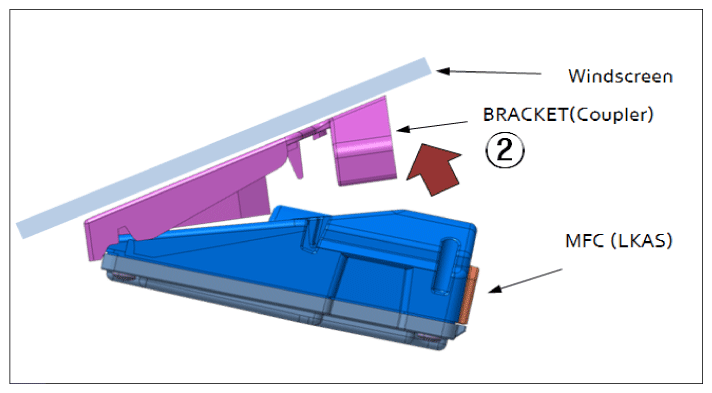

   Fig 2: Camera Installation Position (2nd)

   Courtesy of KIA MOTORS AMERICA, INC.
2. Ignition switch "OFF"
3. Connect KDS/GDS to Data Link Connector (DLC).
4. Ignition switch "ON"
5. Select "Vehicle S/W Management" on KDS/GDS.
6. Perform "SPTAC calibration" in "Vehicle S/W Management" with KDS/GDS.

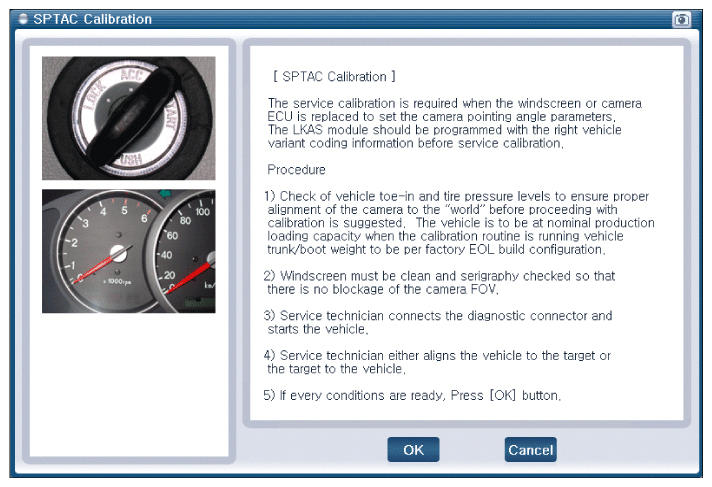

   Fig 3: Scantool Display - LDWS SPTAC Calibration 1

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Scantool Display - LDWS SPTAC Close Range Calibration

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 5: Scantool Display - LDWS SPTAC Far Range Calibration

   Courtesy of KIA MOTORS AMERICA, INC.

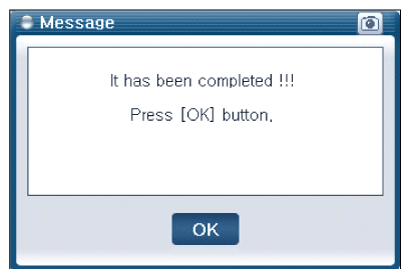

   Fig 6: Scantool Display - LDWS SPTAC Calibration 3

   Courtesy of KIA MOTORS AMERICA, INC.
7. Clear any DTCs stored in the system with KDS/GDS.
8. Re-check DTC in the system with KDS/GDS.
9. Did the same DTC is stored in the system?

   YES

   • Go to "SPC calibration procedure" procedure below.

   NO

   • Fault might be caused by not performing variant coding after LDWS ECU replacement. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ SPC calibration procedure

1. Ignition switch "OFF"
2. Connect KDS/GDS to Data Link Connector (DLC).
3. Ignition switch "ON" & Engine "ON"
4. Select "Vehicle S/W Management"  on KDS/GDS.
5. Perform "SPC calibration" in "Vehicle S/W Management"  with KDS/GDS.

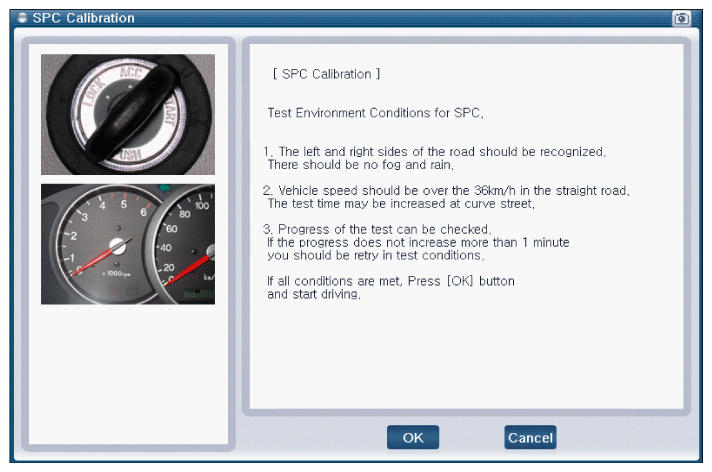

   Fig 7: Scantool Display - LDWS SPC Calibration 1

   Courtesy of KIA MOTORS AMERICA, INC.

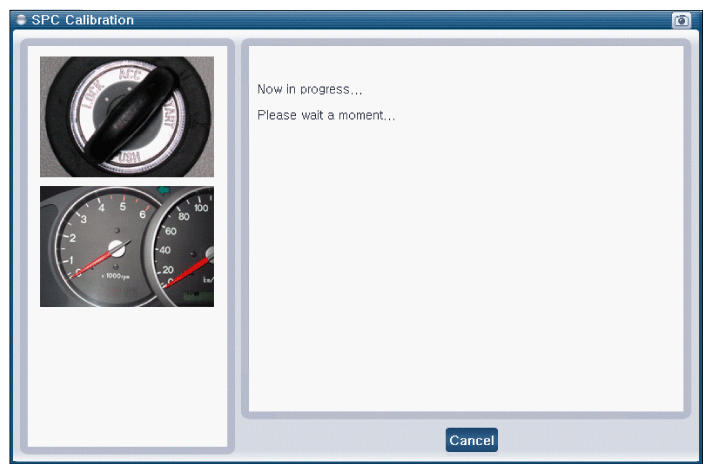

   Fig 8: Scantool Display - LDWS SPC Calibration 2

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 9: Scantool Display - LDWS SPC Calibration 3

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 10: Scantool Display - LDWS SPC Calibration 4

   Courtesy of KIA MOTORS AMERICA, INC.
6. Clear any DTCs stored in the system with KDS/GDS.
7. Re-check DTC in the system with KDS/GDS.
8. Did the same DTC is stored in the system?

   YES

   • Carefully re-do this troubleshooting guide steps.
   • If no problems were found with the circuits or connectors, replace LDWS ECU and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Fault might be caused by not performing variant coding after LDWS ECU replacement. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
