Circuit Diagram

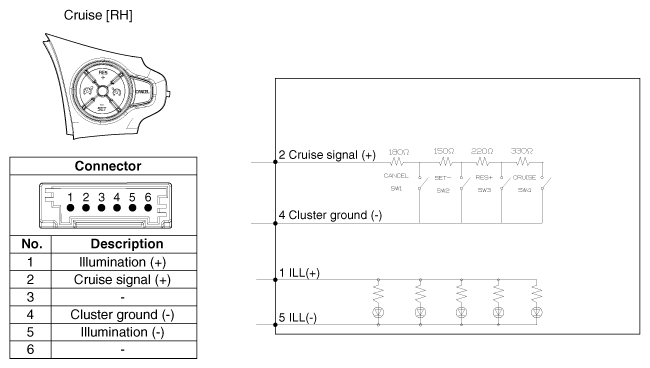

Fig 1: Cruise Control Switch Connector

G11949933

Courtesy of KIA MOTORS AMERICA, INC.
