Register Sensor Initialization

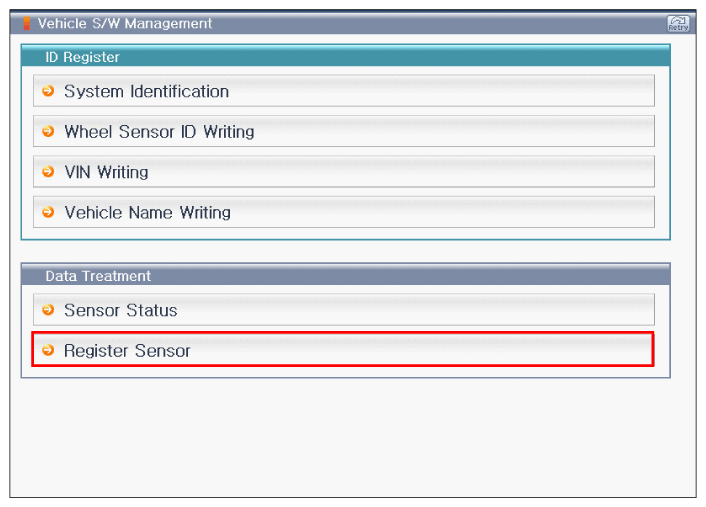

G11953607Courtesy of

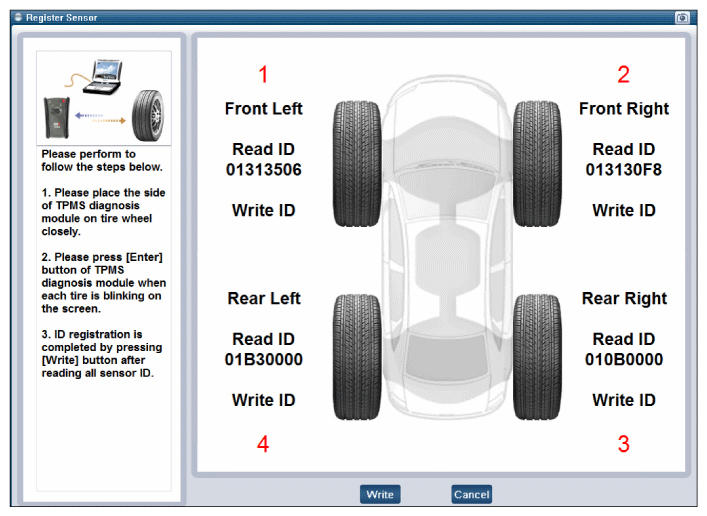

G11953608Courtesy of

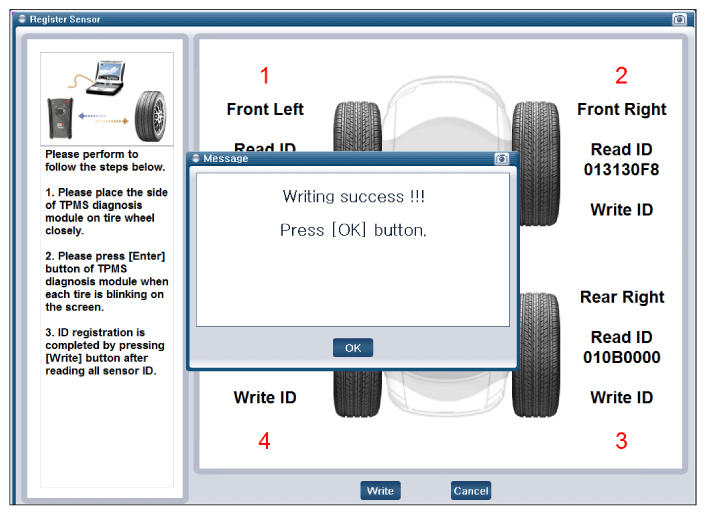

G11953609Courtesy of
NOTE:
  • Write ID Read ID and be sure to check are the same.
  • After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.
