Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Engine "ON".
  3. Turn the steering wheel all the way to CCW or CW and hold.
  4. Check the "Current Data"  about related DTC with KDS/GDS.

    Specification:  Refer the specifications in Fig 1

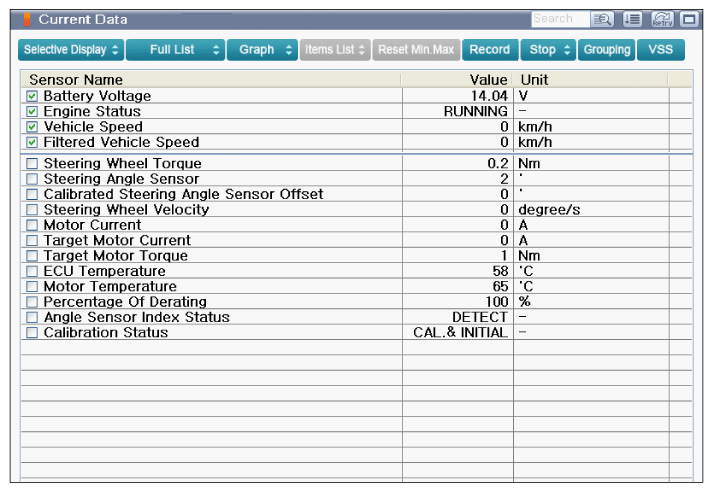

    Fig 1: Scantool Display - Current Data (Engine Idle After Warm Up)
    G11936707Courtesy of KIA MOTORS AMERICA, INC.
  5. Has a problem been found?

    YES

    • Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and EPS ECU memory is not cleared yet. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
