Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Turn the steering wheel to the left or right.
  4. Monitor the "Steering Angle Sensor" parameters on the "Current Data"  With KDS/GDS.

    Specification:  Refer the specifications in Fig 1

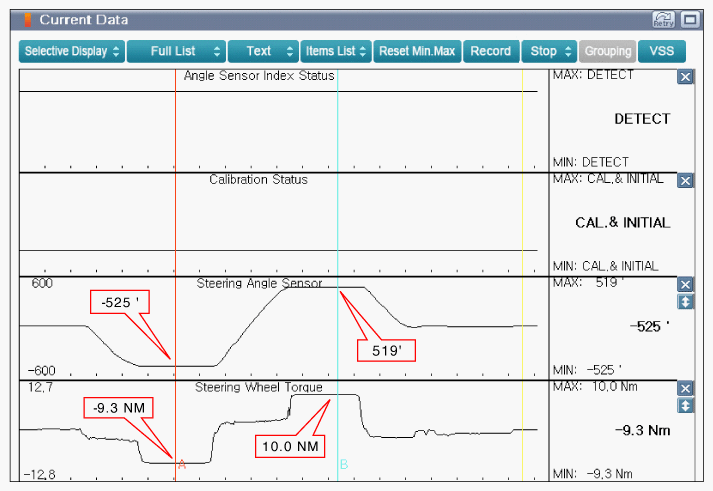

    Fig 1: Scantool Display - Current Data (Turn Steering Wheel To C.C.W Or C.W Upon Ignition ON & Engine ON)
    G11936680Courtesy of KIA MOTORS AMERICA, INC.
  5. If parameter is displayed within specifications?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or EPS ECU connector or was repaired and EPS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
