Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL .")

  3. Remove the driver's side shower duct (A) after loosening the screw.
    G11952961Courtesy of

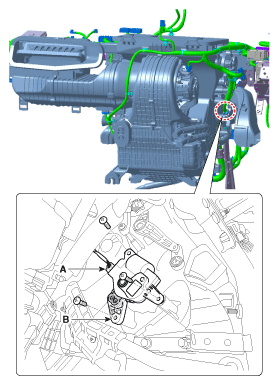

  4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    G11952962Courtesy of
  5. Install in the reverse order of removal.
