Components And Components Location: Components: RH

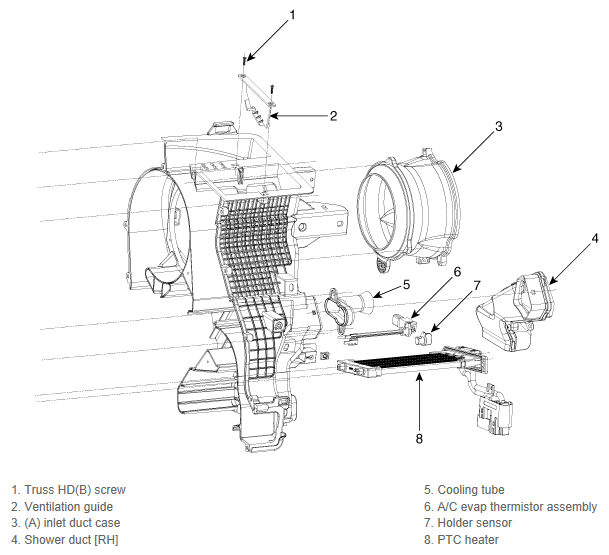

Fig 1: Heater Unit Exploded View RH

G11952926

Courtesy of KIA MOTORS AMERICA, INC.
