Components And Components Location: Components: LH

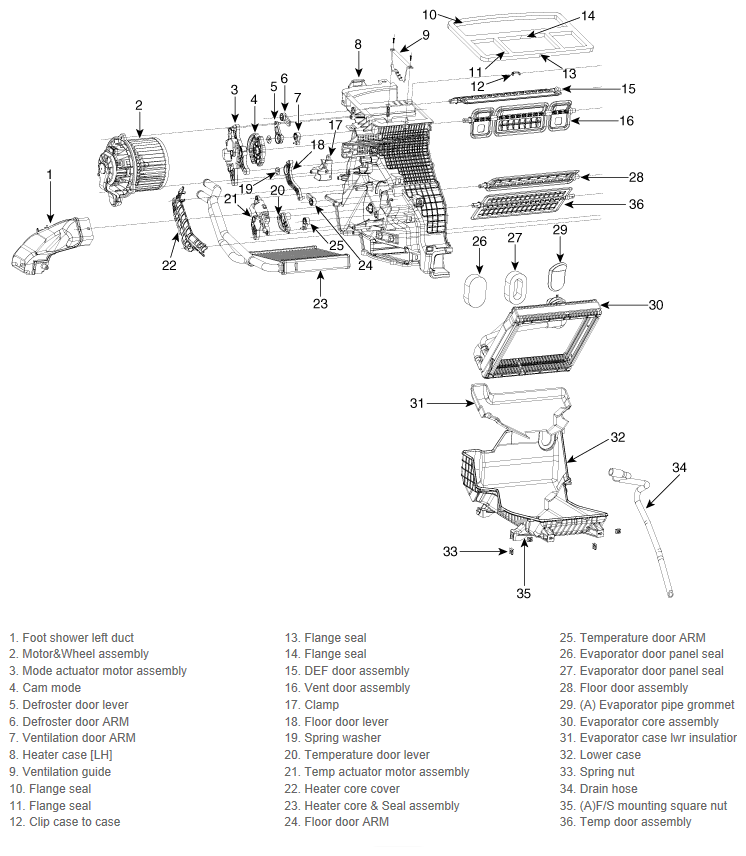

Fig 1: Heater Unit Exploded View LH

G11952925

Courtesy of KIA MOTORS AMERICA, INC.
