Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Blower System >> Blower Unit >> Components And Components Location >> Components

Components And Components Location: Components

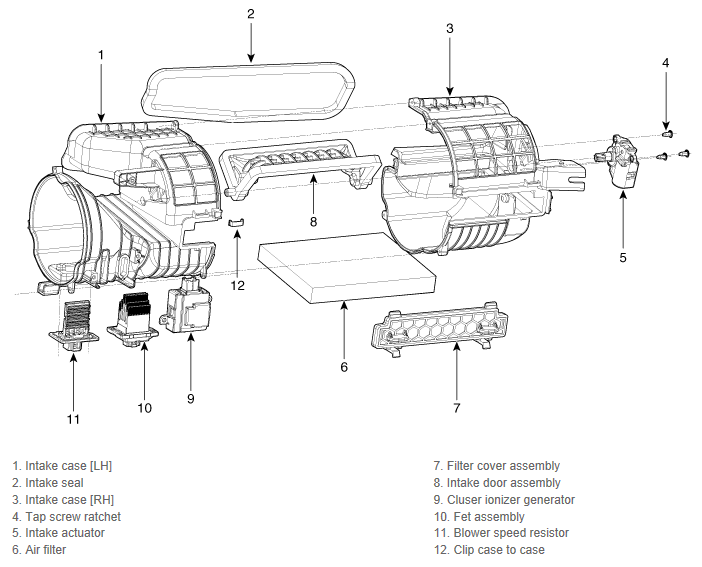

Fig 1: Blower Unit Exploded View

G11952868

Courtesy of KIA MOTORS AMERICA, INC.
