Repair Procedures: Replacement

Recover the refrigerant with a recovery/recycling/charging station.
Disconnect the negative (-) battery terminal.
Remove the front bumper.
(Refer to "FRONT BUMPER COVER .")
Remove the head lamps.
(Refer to "HEAD LAMPS .")
Remove the 2 nuts, and then disconnect the discharge line (A) and liquid line (B) from the condenser.
Tightening torque:

4.9 ~ 7.8 N.m (0.5 ~ 0.8 kgf.m, 3.6 ~ 5.7 lb-ft)

Courtesy of
Remove the radiator reservoir tank hose mounting clip (A).

Courtesy of
Remove the hood latch release handle cable (A).

Courtesy of

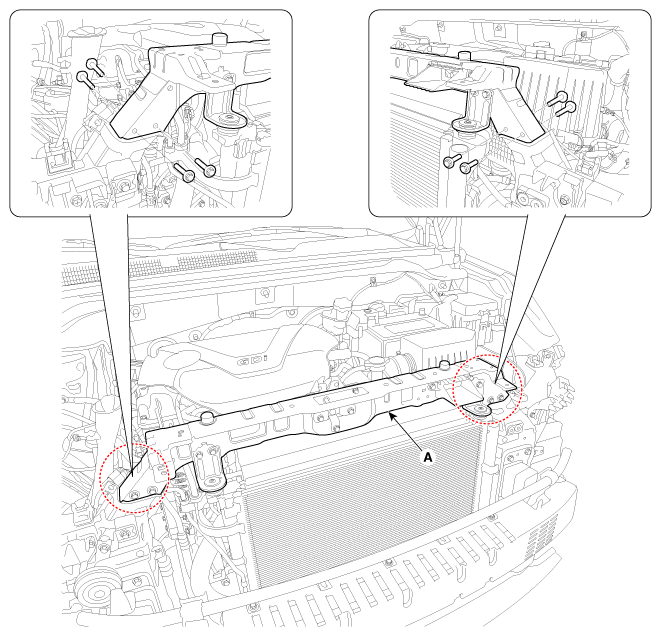

Loosen the mounting bolts and then remove the radiator upper bracket (A).

Courtesy of

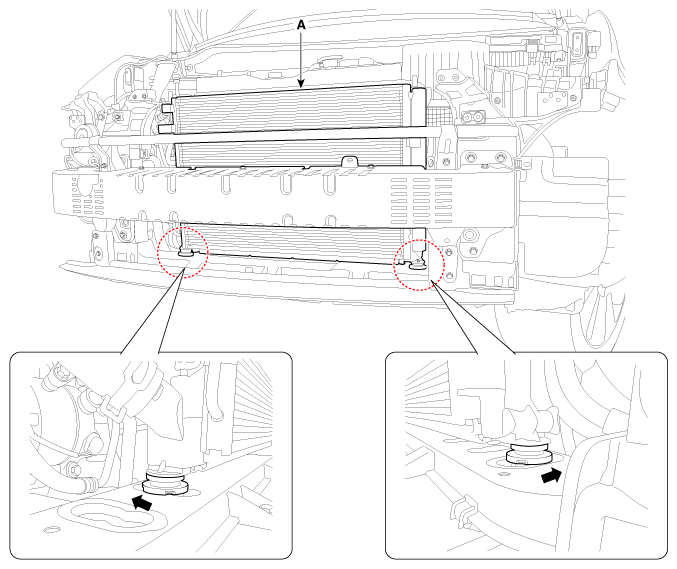

Make a gap for removing the side air guard by moving the condenser and radiator (A) back.

Courtesy of

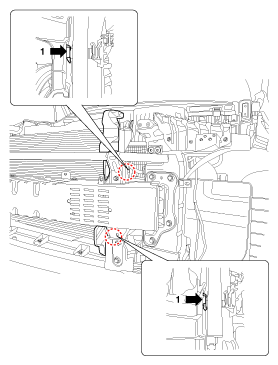

Remove the side air guard (A) by pulling it upwards.
[LH]

Courtesy of

Courtesy of

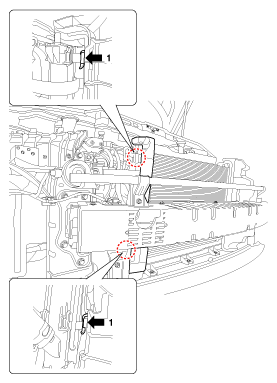

[RH]

Courtesy of

Courtesy of

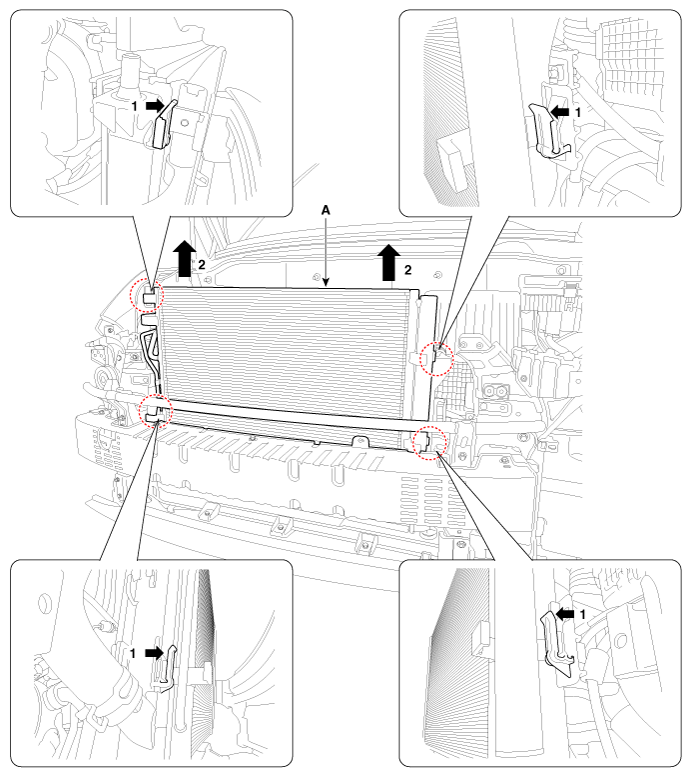

Remove the condenser (A) from radiator.

Courtesy of
Install in the reverse order of removal.
NOTE:
- If you're installing a new condenser, add refrigerant oil.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
- Be careful not to damage the radiator and condenser fins when installing the condenser.
- Charge the system, and test its performance.
