External Control Valve Compressor Inspection (GDS)

Compressor type: Fixed type compressor, External control valve, Internal control valve.
In cases of fixed type and internal control valve, it is possible to inspect compressor's operation with clutch noise.
When it comes to External control valve, however, it cannot be checked in this way because it doesn't have a clutch.
So, ECV should be inspected with GDS as below.

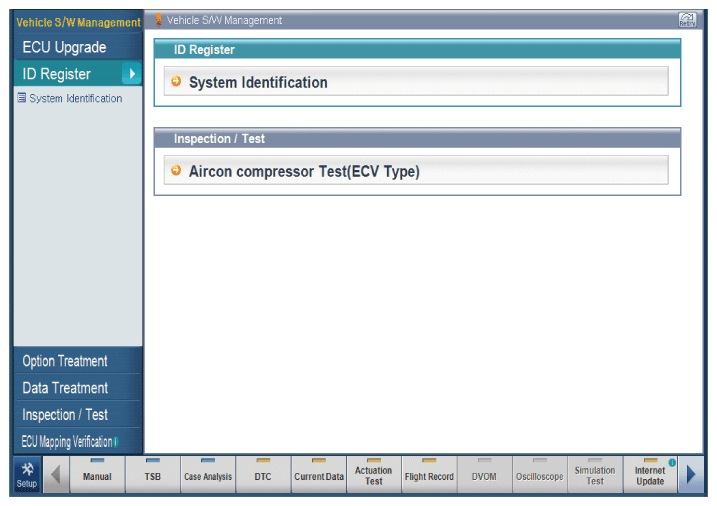

Connect GDS to the vehicle and select "Aircon Compressor Test (ECV type)"
[ECV1]

Courtesy of

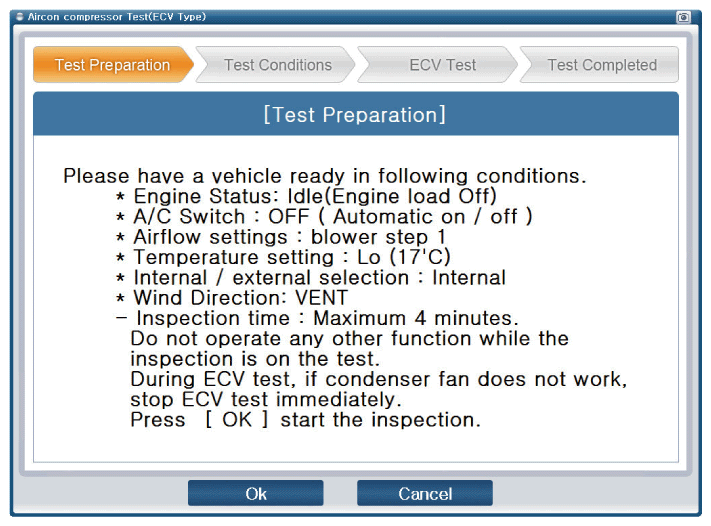

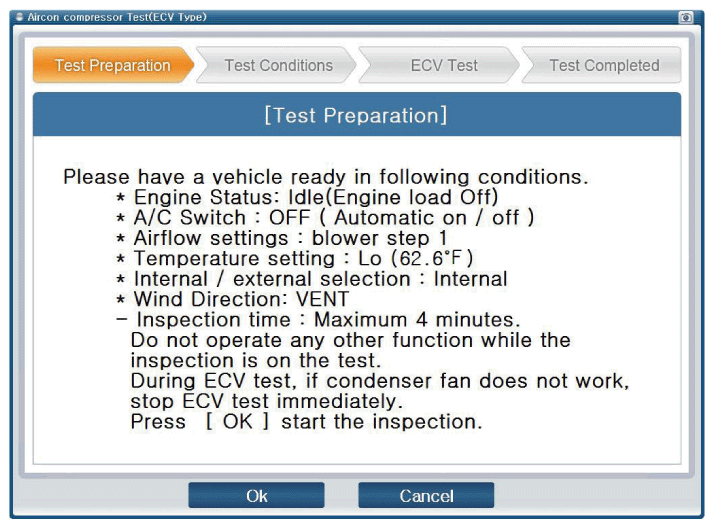

Make the vehicle ready as the GDS instruction on the monitor. (Turn off A/C "switch" only)
[ECV2]

Courtesy of

[ECV3]

Courtesy of

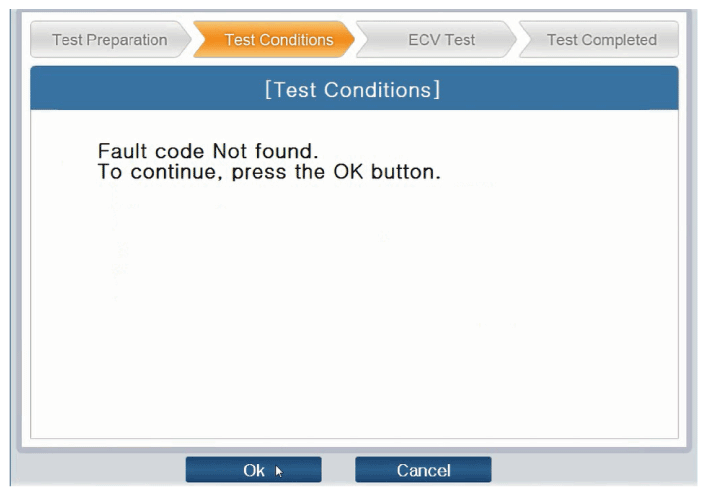

Check if other DTC codes are found before inspect ECV compressor. If so, solve that problems first. If not, press "OK" button to continue.
Information

Do not continue inspection if these DTC codes are found: B1241, B1242, B1672, B1685, B1686, B1687

[ECV4]

Courtesy of
Start inspection
[ECV5]

Courtesy of

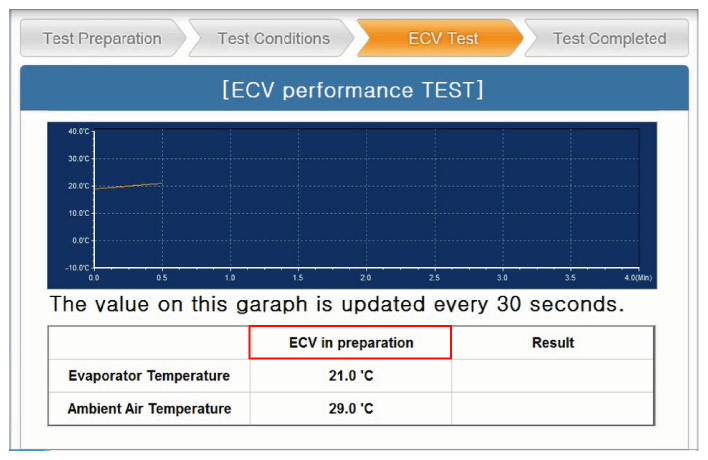

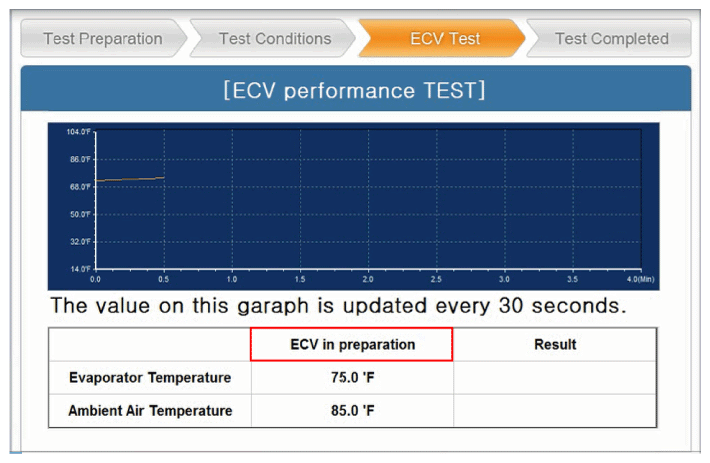

[ECV6]

Courtesy of

CAUTION: Check if condenser fan is operating when condition is changed to "ECV running"

CAUTION: Relief Valve will be operated if the condenser fan does not work because of over pressure in the compressor. The Relief Valve helps the air conditioning system to relieve pressure by releasing refrigerant and oil (closes valve when relived).
* Refill refrigerant and oil after operation of Relief Valve.
* Noise is normal when Relief Valve is in operation.

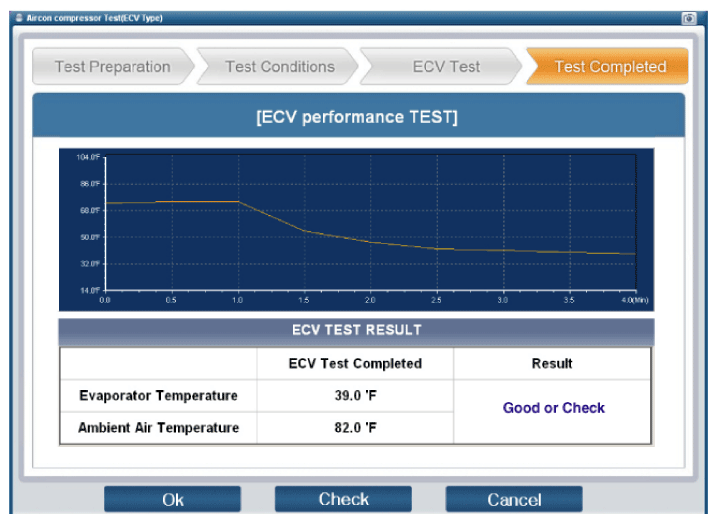

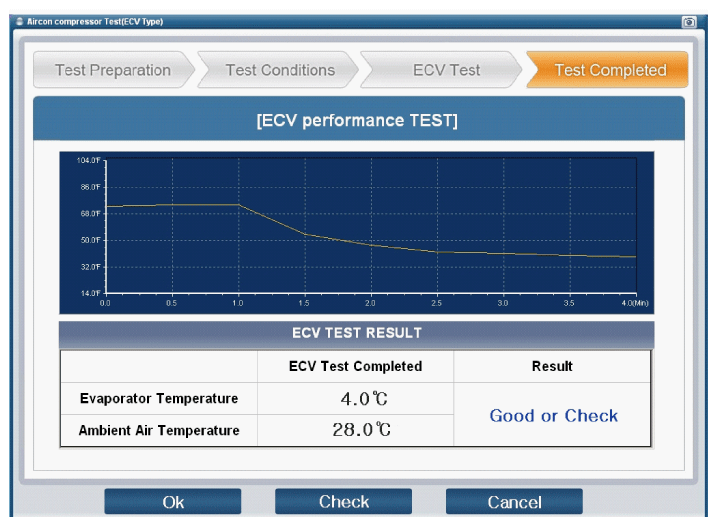

Check the result of inspection.
[ECV7]

Courtesy of

[ECV8]

Courtesy of

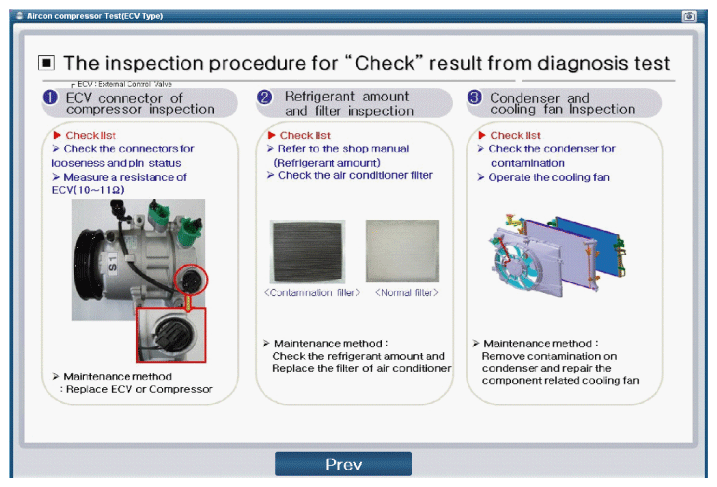

If the result shows "Check", click "Check" and follow the instruction.

Courtesy of
Inspect ECV again from the first step.
