Components And Components Location: Components: RH

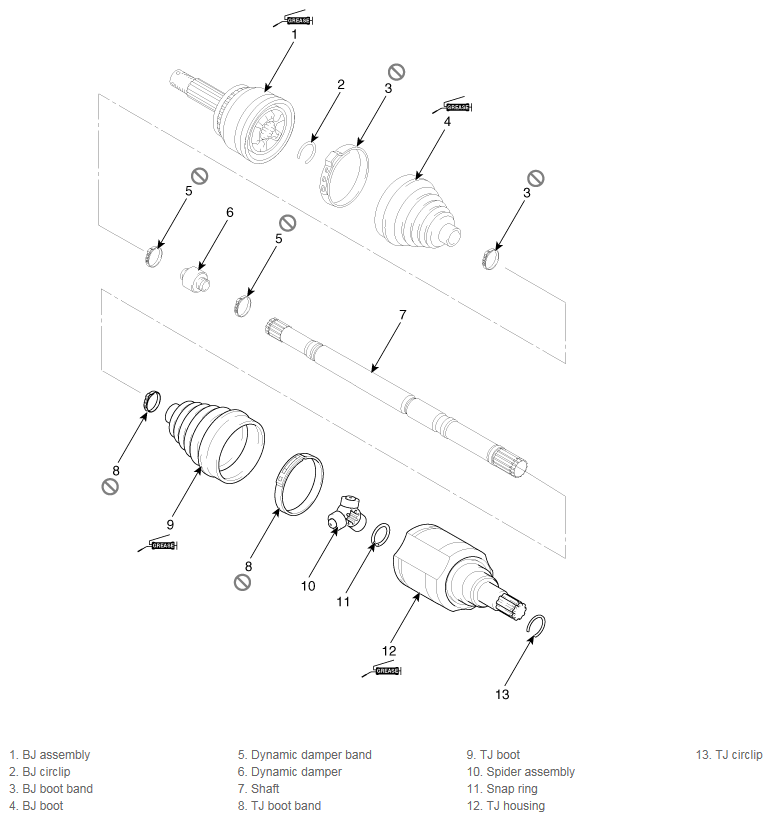

Fig 1: TJ Joint Exploded View RH

G11953422

Courtesy of KIA MOTORS AMERICA, INC.
