Components And Components Location: Components: LH

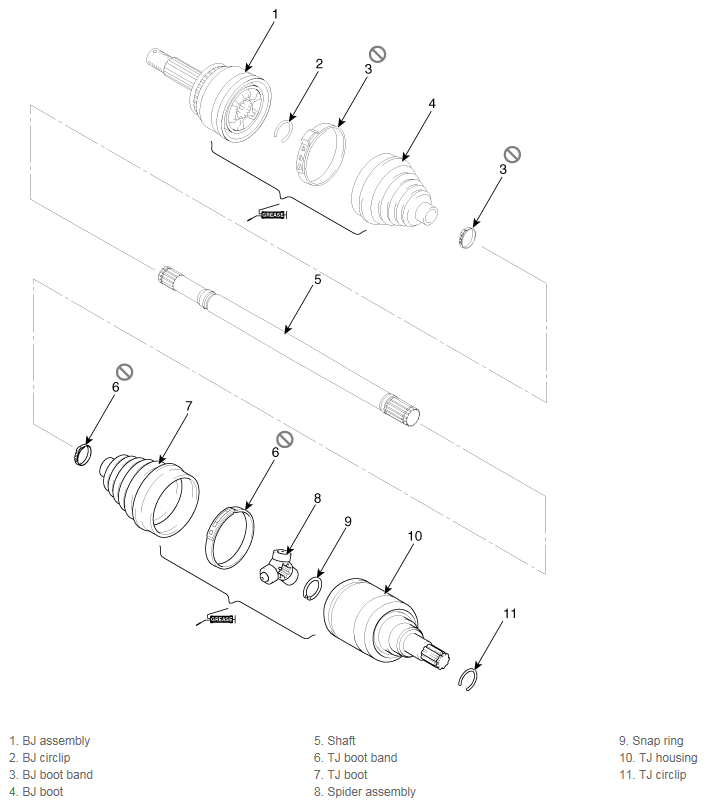

Fig 1: TJ Joint Exploded View LH

G11953421

Courtesy of KIA MOTORS AMERICA, INC.
