Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Dynamic Damper >> Components And Components Location >> Components

Components And Components Location: Components

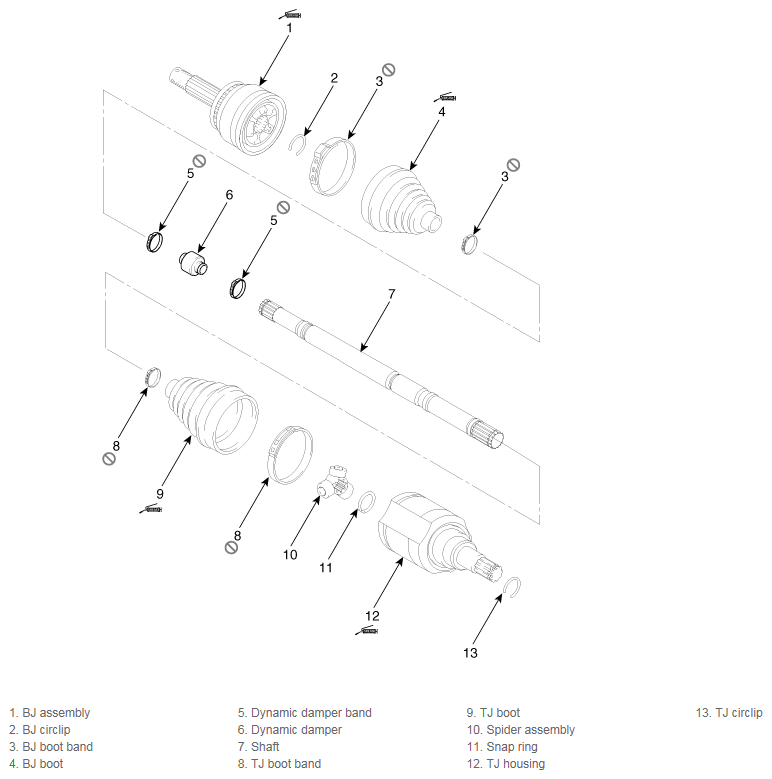

Fig 1: Dynamic Damper Exploded View

G11953435

Courtesy of KIA MOTORS AMERICA, INC.
