Mike's Workshop Manuals: Service manuals for every vehicle

Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> BJ Boot >> Components And Components Location >> Components

Components And Components Location: Components

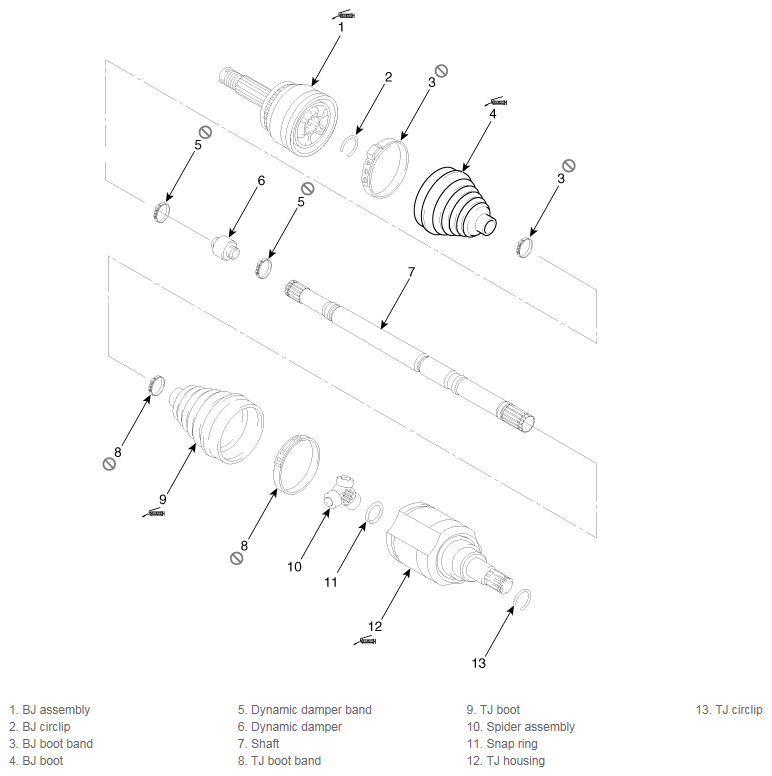

Fig 1: BJ Boot Exploded View

G11953440

Courtesy of KIA MOTORS AMERICA, INC.
