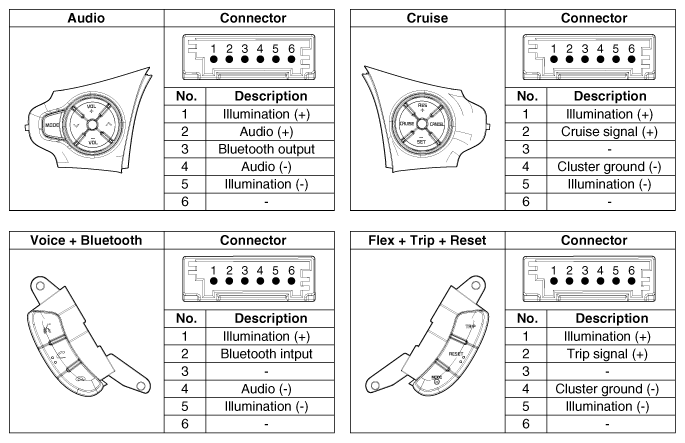

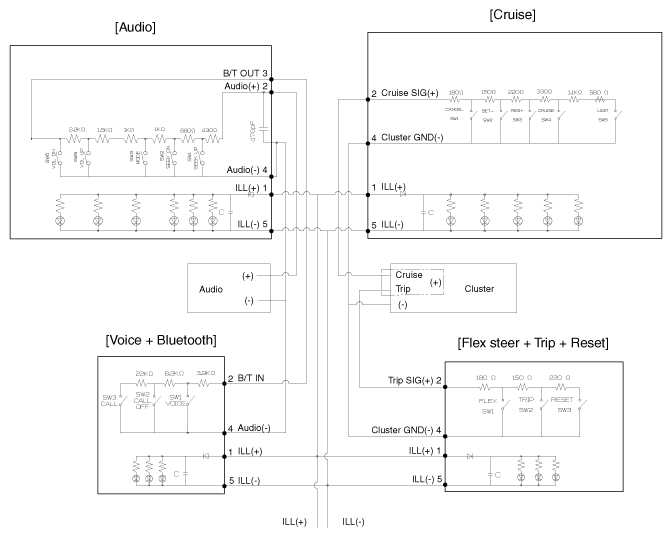

Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Audio Remote Control >> Schematic Diagrams >> Circuit Diagram
