Signal Waveform & Data

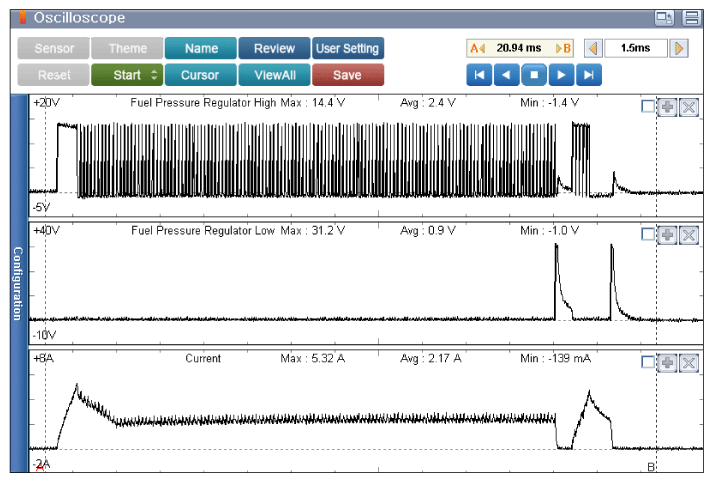

Fig 1: Scantool Display - Signal Waveform & Data (Engine Idle After Warm-Up)
G11940567Courtesy of KIA MOTORS AMERICA, INC.

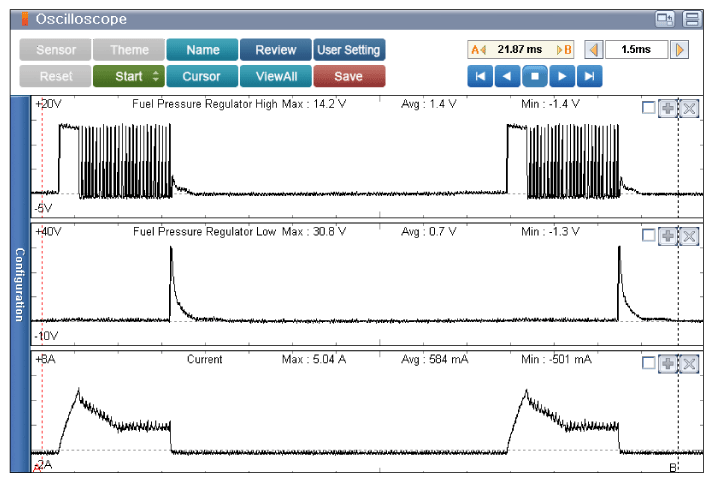

Fig 2: Scantool Display - Signal Waveform & Data (Approx 2000 RPM)
G11940568Courtesy of KIA MOTORS AMERICA, INC.

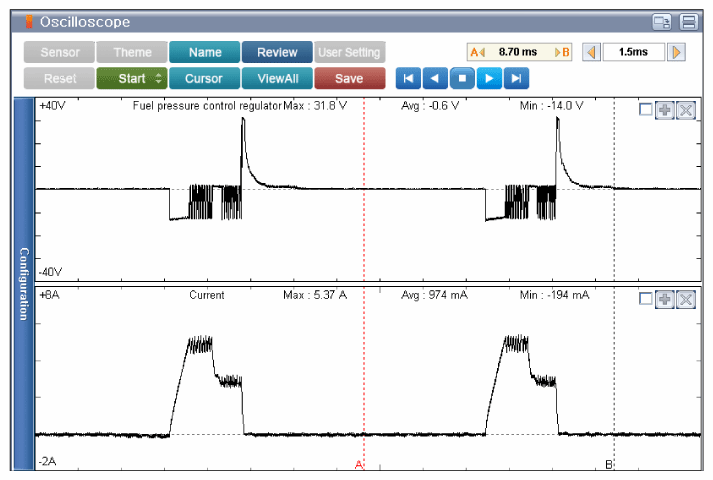

Fig 3: Scantool Display - Signal Waveform & Data (Approx 3000 RPM)
G11940569Courtesy of KIA MOTORS AMERICA, INC.
