Signal Waveform & Data

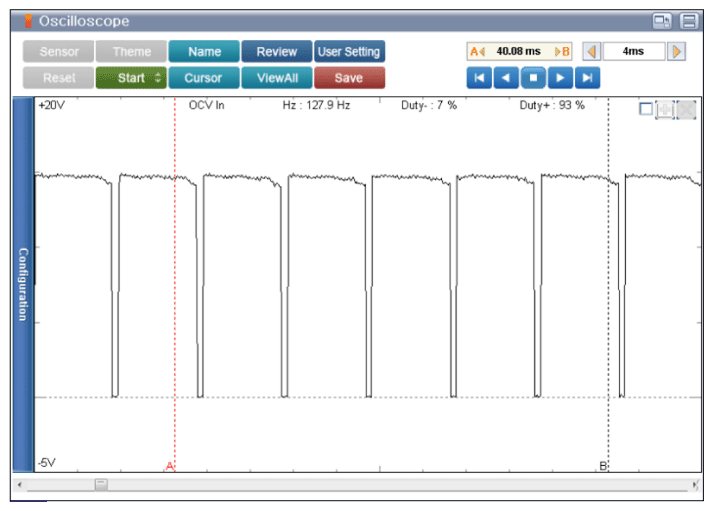

Fig 1: Scantool Display - Normal OCV (Intake) Waveform With Engine At Idle

Courtesy of KIA MOTORS AMERICA, INC.

Duty (-) of OCV is approximately 7% with engine at idle. Duty (-) value increases in proportion to engine load.
