Home >> Kia >> 2016 >> Soul ! >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Idle Stop & Go (ISG) System - 2.0L >> AGM Battery >> Repair Procedures >> Inspection >> Battery Diagnostic Flow

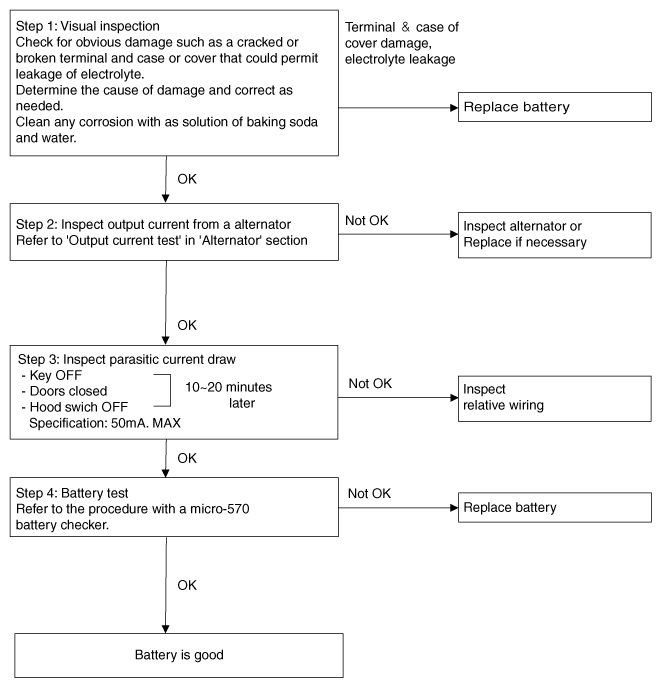

Battery Diagnostic Flow

G11955610Courtesy of
