Repair Procedure: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.
NOTE:
- The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
- Perform the procedures below after replacing the solenoid valve.
1. Refill the automatic transaxle with fluid.
  (Refer to Hydraulic System - "FLUID ")
2. Reset the automatic transaxle adaptive values using the KDS/GDS.

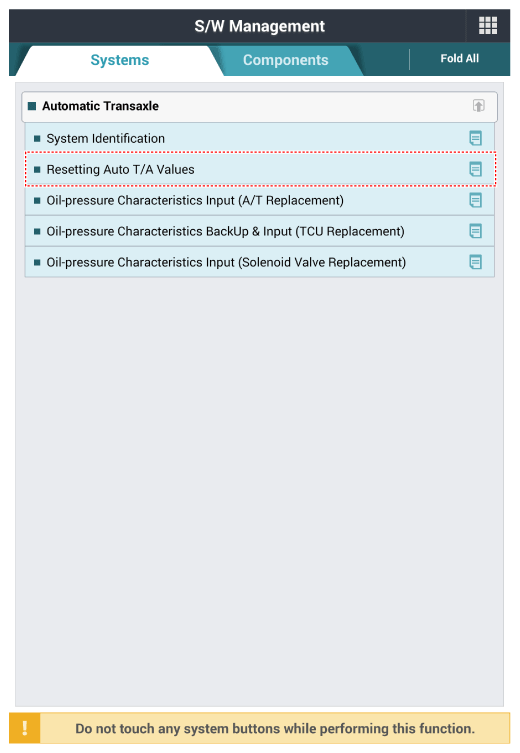

  Fig 1: Scantool Display - S/W Management
  Courtesy of KIA MOTORS AMERICA, INC.
3. Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - "Repair Procedure ")
4. Confirm that there is no fluid leakage on connections after repairing.
