Circuit Diagram

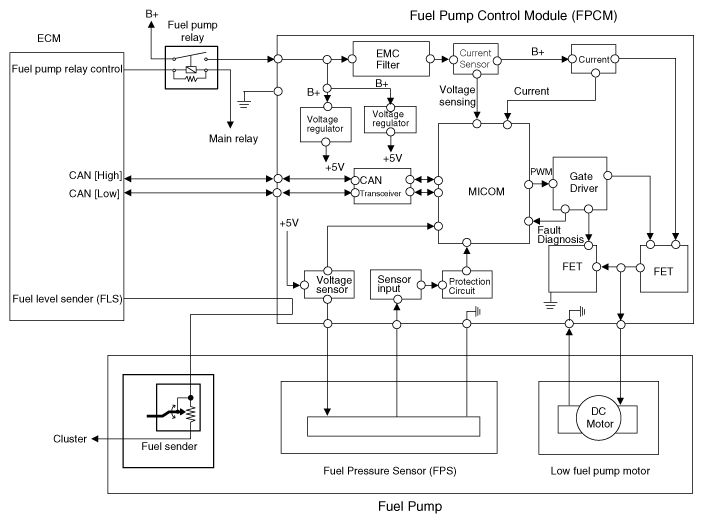

Fig 1: Fuel Pump Control Module (FPCM) Schematic Diagram

G11865709

Courtesy of KIA MOTORS AMERICA, INC.
