Variant Coding

  1. Ignition switch "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W Management"  on GDS.
  5. Perform "Variant Coding" in "Vehicle S/W Management"  with GDS.

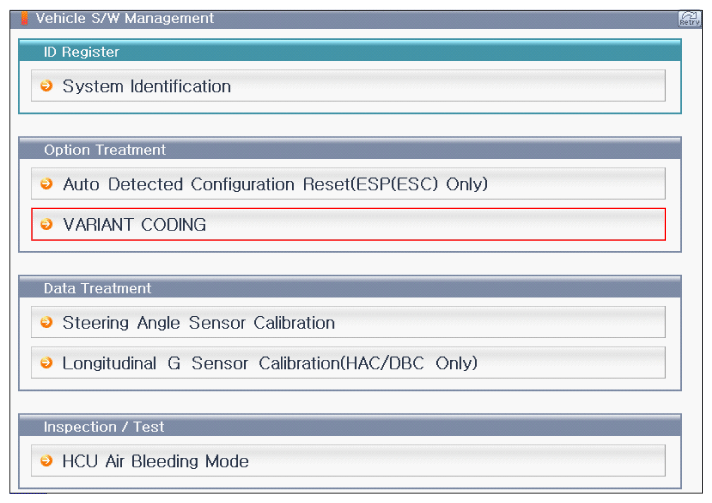

    Fig 1: Screen Display - Vehicle S/W Management
    G11872038Courtesy of KIA MOTORS AMERICA, INC.

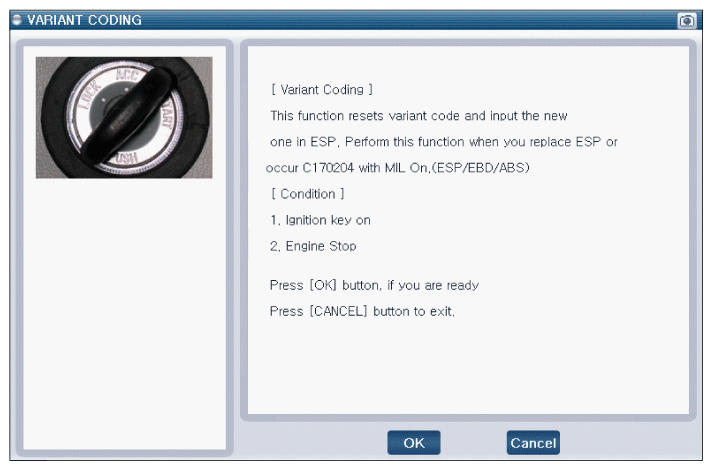

    Fig 2: Screen Display - Variant Coding
    G11872039Courtesy of KIA MOTORS AMERICA, INC.
