BSD Unit Alignment

  1. Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using GDS.
  2. Select "BSD Radar Calibration" procedure in BSD system.
    Fig 1: Screen Display - Vehicle S/W Management
    G11867763Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the "BSD Radar Calibration" procedure below.

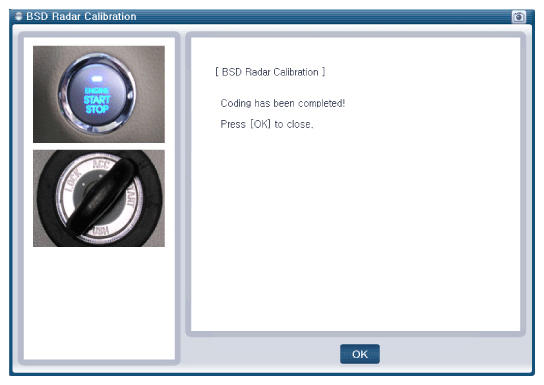

Fig 2: Screen Display - BSD Radar Calibration
G11867764Courtesy of KIA MOTORS AMERICA, INC.
