Component Inspection

■ Check IATS Performance

1. IG KEY "OFF".
2. Disconnect IATS connector.
3. Measure resistance between Pin No. 3 (temp) terminal and Pin No. 4 (ground) terminal of the IATS. (Component Side).

   Specification:  Approx. 2.2 kΩ at 25°C (77°F)

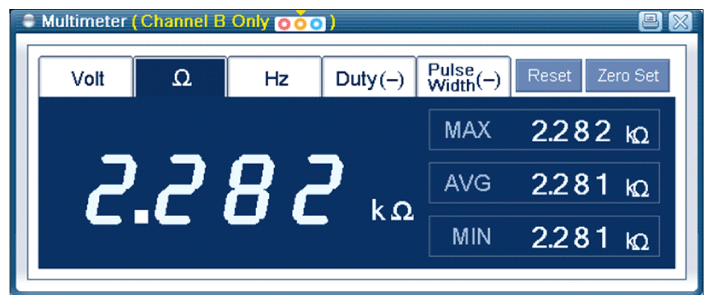

   Fig 1: Screen Display - Resistance Of IATS

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured Value within specification?

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully redo this troubleshooting guide steps.
   • If no problems were found with the circuits or connectors, replace the BPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
