Actuator Test

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

When it replace H/Lamp Unit, it necessarily check up by operating actuator test.

Select "AFLS" menu after selecting a vehicle.
Select "Actuator test"

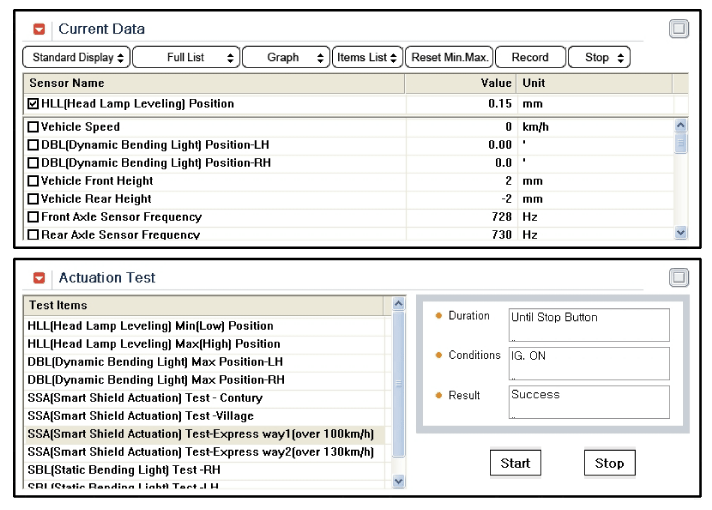

Fig 1: Screen Display - Current Data And Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
Select DBL or HLL test by using "Start" button.
In case select DBL or HLL ACTUATOR DRIVE TO MAX POS (swivelling)
In case select "Start" button: drive to max position right direction (15°)

In case select another part: back to initial position

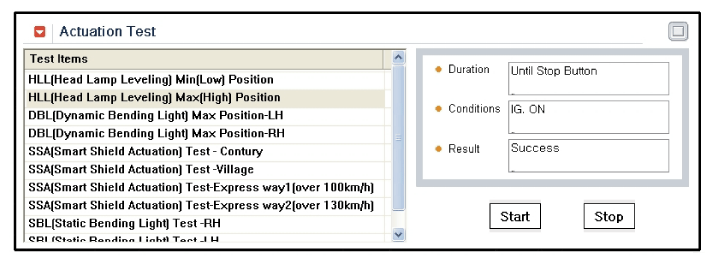

Fig 2: Screen Display - Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
