Signal Waveform & Data

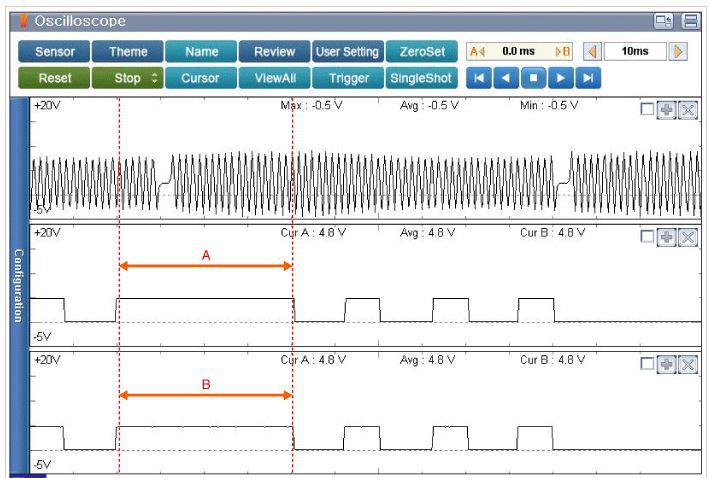

Fig 1: Scantool Display - Normal Waveforms Of CKPS And CMPS-IN/EX At Engine Idle
G00571460Courtesy of KIA MOTORS AMERICA, INC.
  1. CKPS & CMPS synchronization - There are about 8 teeth between the CKPS missing tooth and CMPS signal.
  2. CKPS & CMPS synchronization - There are about 1 tooth between the CKPS missing tooth and CMPS signal.
