Signal Waveform & Data

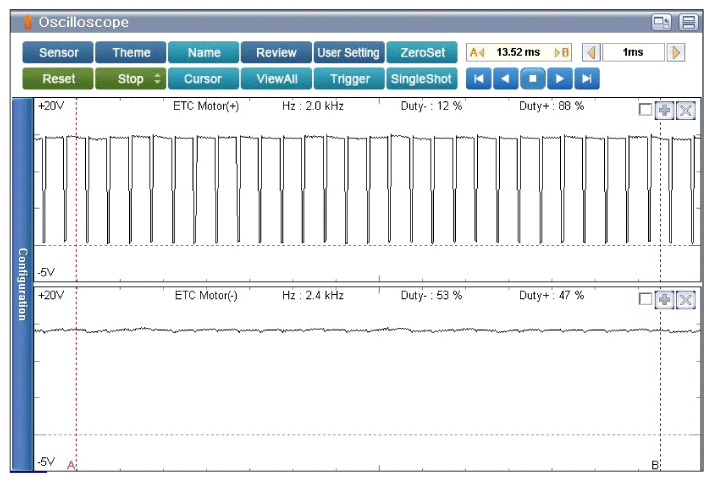

Fig 1: Scantool Display - Signal Waveform And Data (Engine Idle After Warm Up)
G11854504Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor (+) → Duty (+) Approx. 88%

Duty (-) Approx. 12%

ETC Motor (-) → Not in Control
