2016
>>
Sedona EX
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Emission Control System - General Information
>>
Components And Components Location
>>
Components Location
Components Location

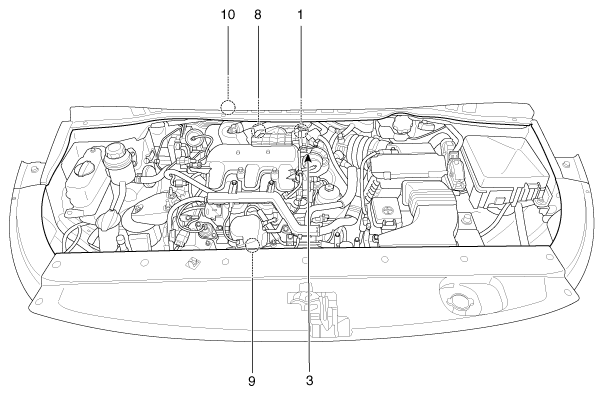

Fig 1: Emission Control System Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

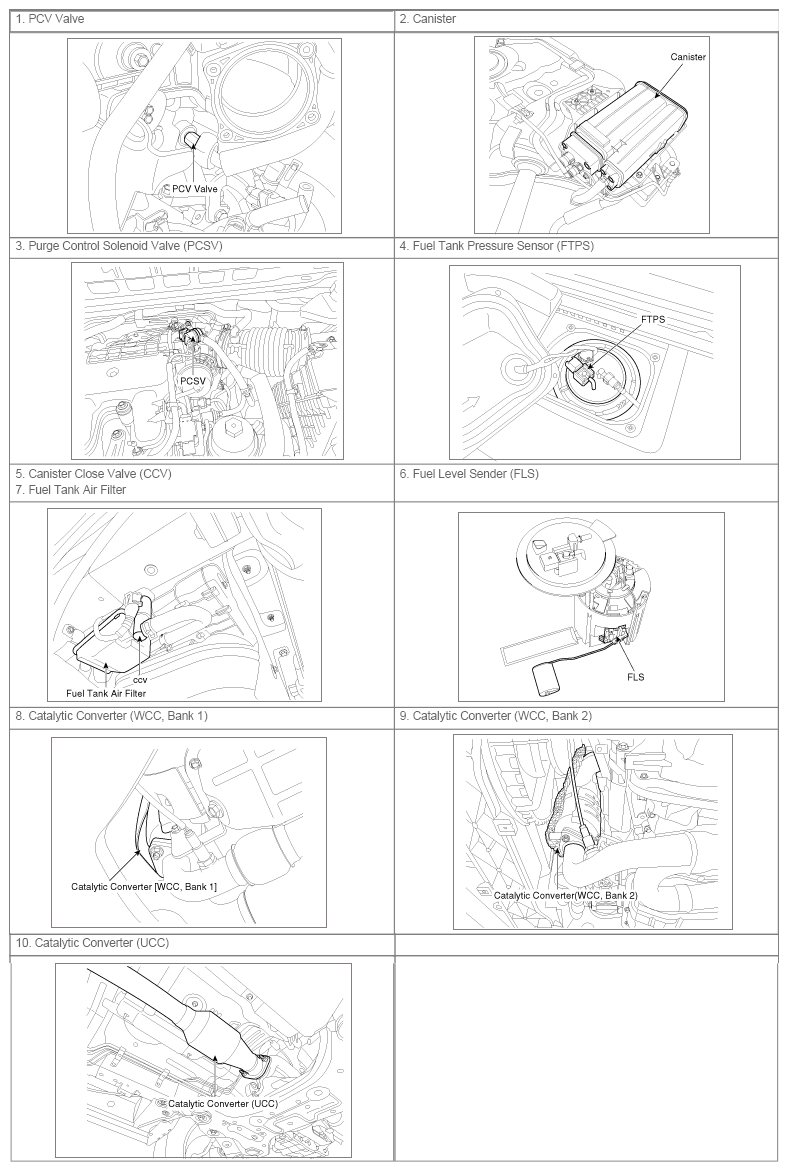

Fig 2: Emission Control System Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

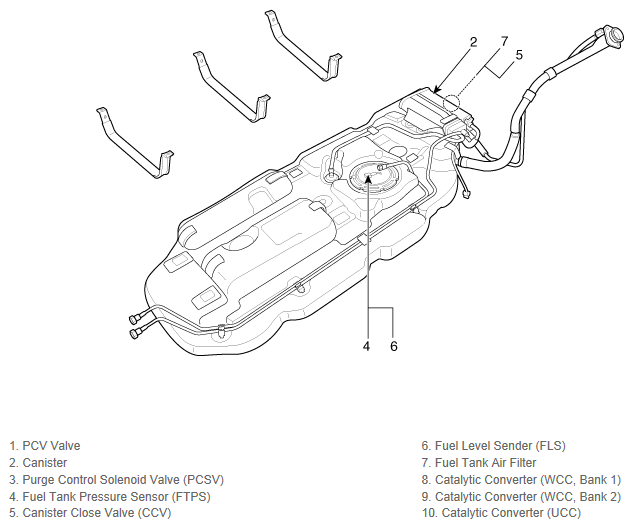

Fig 3: Locating Emission Control System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
