Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition switch "ON"
  3. Select correct Vehicle Model, Year, and Engine Type.
  4. Select "CLU" system. (1)
  5. Select "Fault Code Searching". (2)

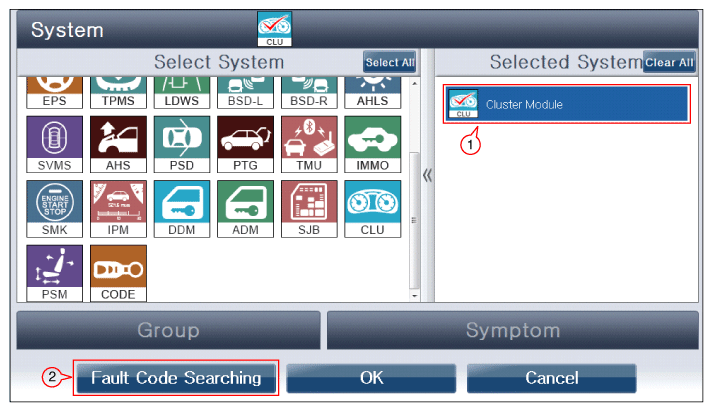

    Fig 1: Selecting CLU System Screen
    G11860272Courtesy of KIA MOTORS AMERICA, INC.
  6. Monitor DTCs in selected system.

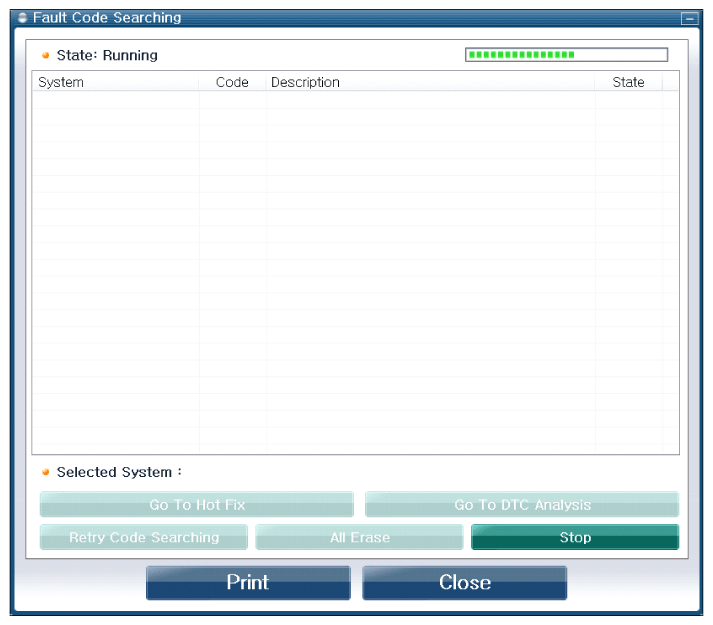

    Fig 2: Display - Fault Code Searching Screen
    G11860273Courtesy of KIA MOTORS AMERICA, INC.
  7. Does selected systems have any DTCs present?

    YES

    • Repair DTCs in Instrument Cluster system first and then carefully re-do this troubleshooting guide steps.
    • If problem still occurs, go to "WIRING INSPECTION " procedure.

    NO

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
