Component Inspection

■ Check Ignition Coil

1. IG "OFF" and disconnect ignition coil connector.
2. Measure resistance between power and signal terminals of ignition coil connector. (Measurement "A")
3. Measure resistance between power terminal of ignition coil connector and out terminal of secondary ignition coil. (Measurement "B")

   Specification:

   Resistance	Primary Coil	Secondary Coil
   	0.75Ω ± 15% (20°C/68°F)	7.0 kΩ ± 15% (20°C/68°F)

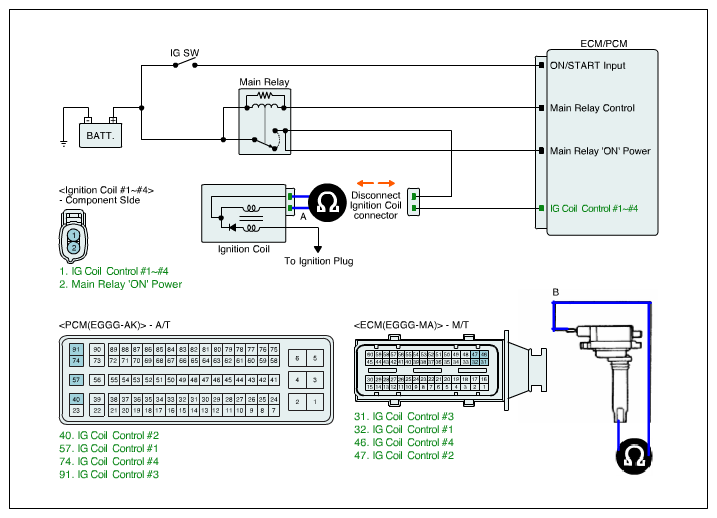

   Fig 1: Measuring Resistance Between Power And Signal Terminals Of Ignition Coil Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specification?

   YES

   • Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good Ignition Coil and check for proper operation. If the problem is corrected, replace Ignition Coil and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
