Component Inspection

■ Check OCV resistance

1. IG "OFF".
2. Disconnect OCV connector.
3. Measure resistance between terminal 1 and 2 of OCV connector. (Component Side)

   Specification:

   Item	Specification
   Coil Resistance (Ω)	6.9 ~ 7.9 [20 °C 68 °F]

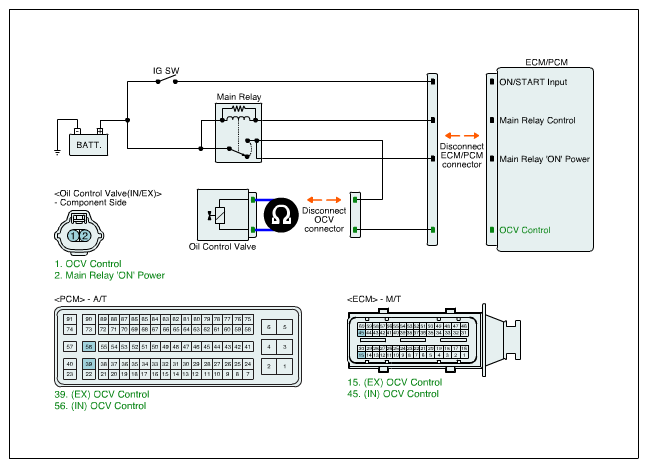

   Fig 1: Measuring Resistance Between Terminal 1 And 2 Of OCV Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specification?

   YES

   • Many malfunctions in the electrical system are caused by poor harness (es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage. So, check poor connections and the related circuit between ECM and component thoroughly. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good OCV and check for proper operation. If the problem is corrected, replace OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
