Circuit Diagram

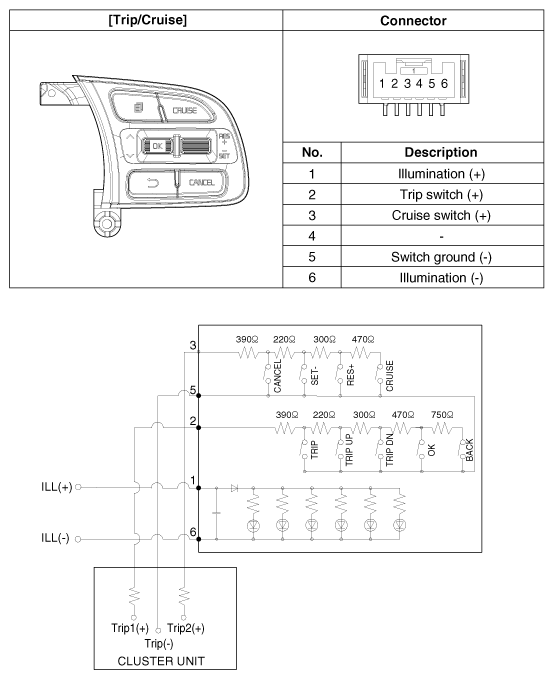

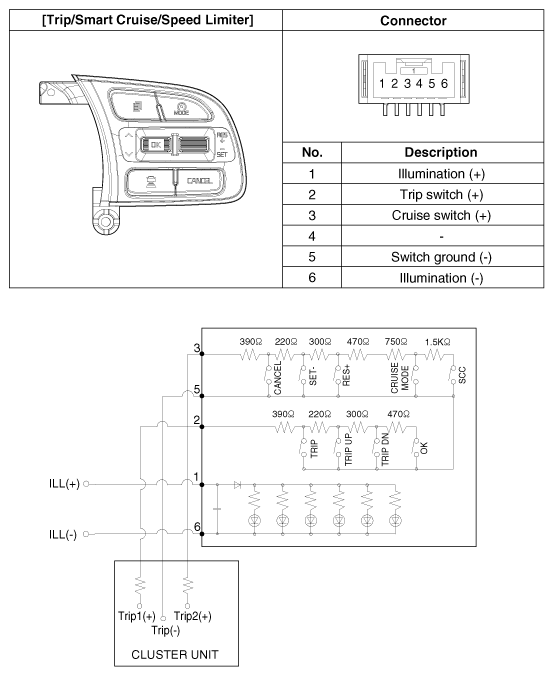

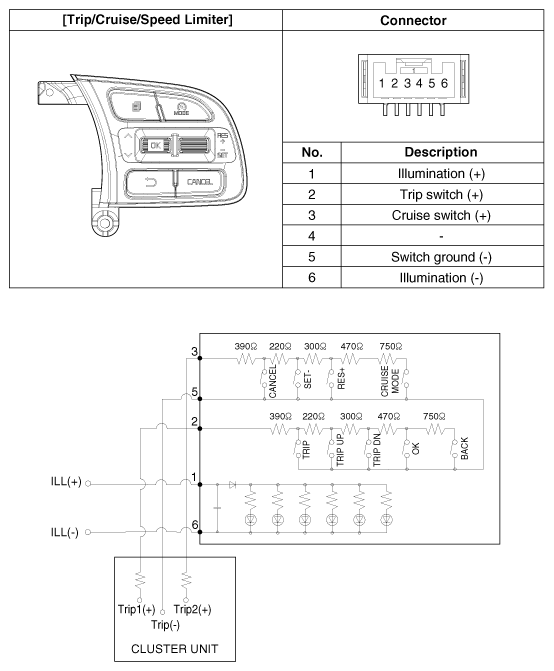

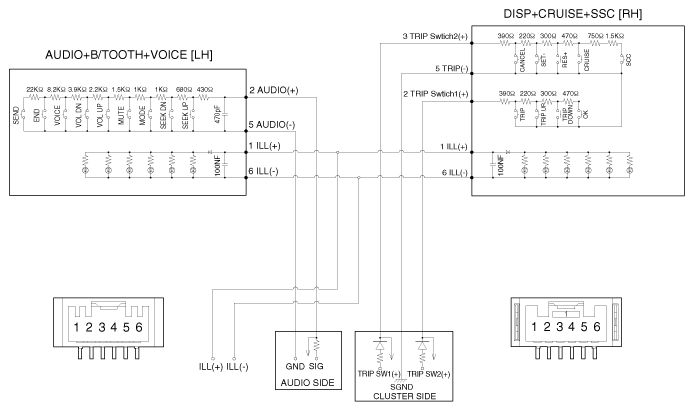

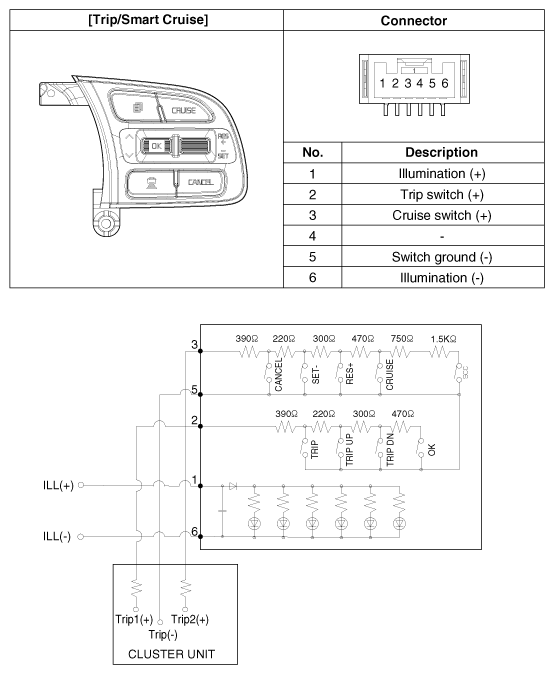

Fig 1: Advanced Smart Cruise Control Circuit (1 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Advanced Smart Cruise Control Circuit (2 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Advanced Smart Cruise Control Circuit (3 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Advanced Smart Cruise Control Circuit (4 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Advanced Smart Cruise Control Circuit (5 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Advanced Smart Cruise Control Circuit (6 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Advanced Smart Cruise Control Circuit (7 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Advanced Smart Cruise Control Circuit (8 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Advanced Smart Cruise Control Circuit (9 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.
