[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector.
  3. Remove the sensor by loosening the mounting bolt (A).

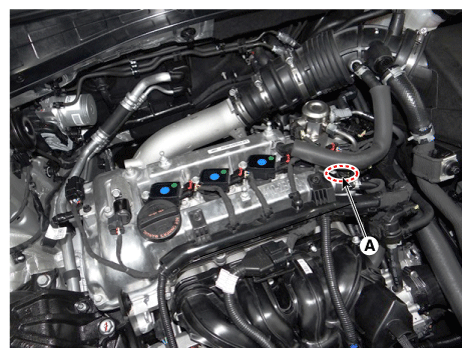

Fig 1: Removing Sensor Mounting Bolt (Bank 1/Intake)
G11823470Courtesy of KIA MOTORS AMERICA, INC.
