Monitor GDS Data

  1. Connect GDS to DLC(Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data" about related DTC with GDS.

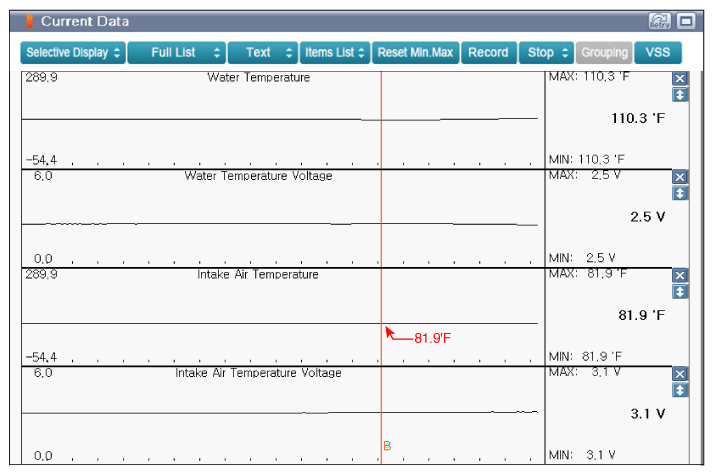

    Fig 1: Scantool Display - Sensor Data Review (Before Warm-Up)
    G11821461Courtesy of KIA MOTORS AMERICA, INC.

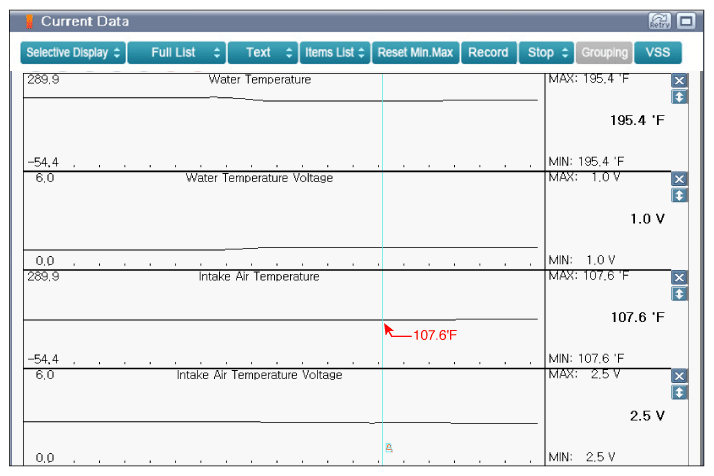

    Fig 2: Scantool Display - Sensor Data Review (After Warm-Up)
    G11821462Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.

    NO

    • Go to Wiring Inspection procedure below.
