Home >> Kia >> 2016 >> Optima Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Accelerator Position Sensor (APS) >> Schematic Diagram >> Circuit Diagram

Circuit Diagram

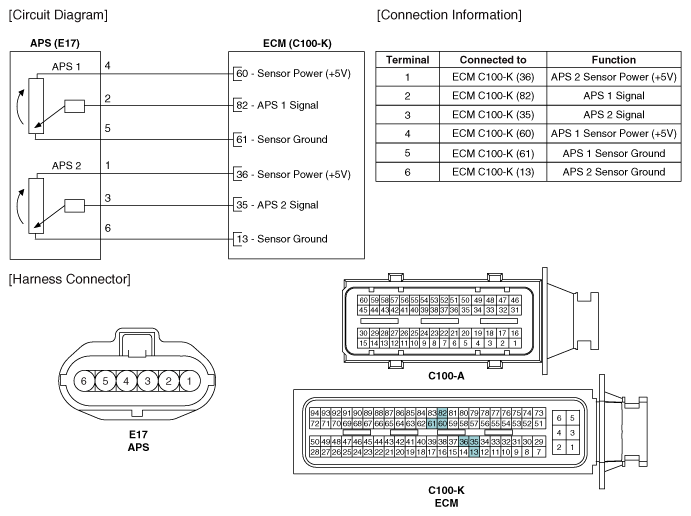

Fig 1: Accelerator Position Sensor Circuit Diagram & Terminal Description

G11815771

Courtesy of KIA MOTORS AMERICA, INC.
