Circuit Diagram (1)

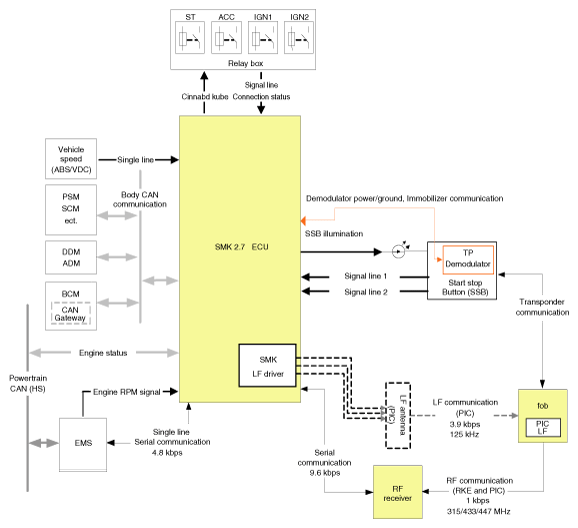

Fig 1: Button Engine Start System - Circuit Diagram (1)

G11818343

Courtesy of KIA MOTORS AMERICA, INC.
